Mullion Cutting Saw for PVC Profiles V-Cutting Saw Glazing Bead Cutting Machine

Product Description

Cutting Machine

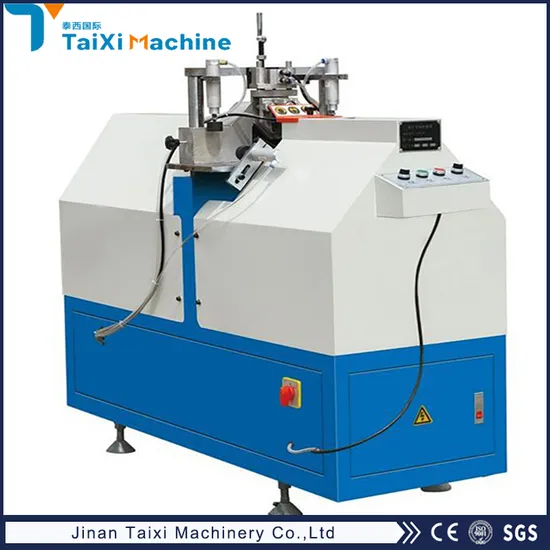

Mullion cutting saw for PVC Profiles SVJ-45
Description
For sawing V-shape tips for mullions of plastic doors and windows that are welded.
Two blades are arranged at 90°, so that two V-shape tips may be cut at one clamp of work pieces, with high precision and high productivity.
Special clamps-lift open device to prevent the escape of work piece.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Positioning Length 300~1600mm
Dimensions 1900*700*1350
Weight 210kg V-cutting saw SVJ-60
Description
For cutting 90°V-shape groove for aluminum-plastic profiles.
Automatic centralized positioning device makes the operation easier.
Pneumatic drive facilitates the operation.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Positioning Length 300~1600mm
Grooving Depth 20~60mm
Dimensions 1900*700*1350
Weight 210kg
Glazing Bead Saw SYJW-1800
Description
For cutting glass stop at the angle of 45°and for milling pressure foot.
The efficient machine is capable of cutting two trim strips at the same time.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Profile Height 29mm
Working Range 320~1800mm
Dimensions 1900*700*1350
Weight 210kg
Dual-Head Mitre Saw for PVC Profiles SJZ2-350X3500

Description
Be applicable for cutting with fixed dimensions and fixed angles at -45°, 90° or 45°for plastic profiles.
Oscillating feeding is smooth in feeding.
Parameters:
Input Power 2*1.5KW
Power Supply 380V/50Hz
Working Pressure 0.5~0.8MPa
Gas Consumption 100L/min
Cutting Angle 90°~45°
Cutting W*H 200*100mm
Cutting Range 290~3500mm
Blade Specs 350*30
Dimensions 4000*1120*1450
Weight 600kg or so
Dual-Head Mitre Saw for PVC Profiles SJZ2-400X3500
Description
For cutting of plastic material at the angle of 45°-90°.
Linear thrust feeding is applied. Pneumatic drive is used for clamping and cutting.
Parameters:

Input Power	2*1.5KW
Power Supply	380V/50Hz
Working Pressure	0.5~0.8MPa
Gas Consumption	100L/min
Cutting Angle	90°~45°
Cutting W*H	100*500mm
Cutting Range	450~3500mm
Blade Specs	400*30
Dimensions	4000*1000*1450
Weight	600kg or so

Was founded in January 2008. The company is headquartered in Jinan, a beautiful spring city, with convenient
transportation and superior geographical location. With a registered capital of 10 million yuan, the company has invested
in the construction of a 20000 square meter standardized factory building, which has passed the acceptance of the
national safety assessment and environmental assessment, and meets the requirements of the state for environmental
assessment, safety inspection and fire control. The company has 89 employees, including 21 employees with senior
technical titles, 10 invention patents and new use patents, 8 works reqistration, 21 various certifications and tests. It is a high-tech manufacturing enterprise integrating R& D, production, sales and service art tuyere
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral carton and wooden case. We also can pack the goods
according to your instruction including out package and kinds of labels.Q2. How about your delivery time?A: Generally, it will take 5 to 7 working days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.Q3.What is your terms of payment?A: Usually do T/T, L/C or Western Union,T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings.Q5. Do you test all your goods before delivery?A: Yes, but you will be always welcome to our company to inspect the goods before delivery.

---
