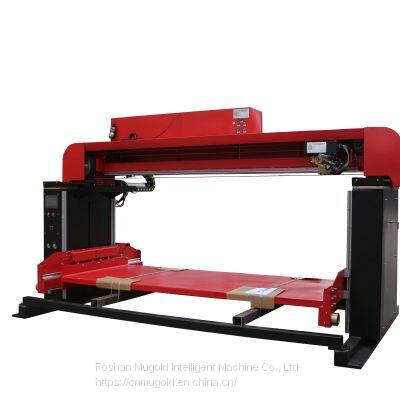

316AB automatic grinding and drawing machine
Equipment Introduction:
This equipment is a new type of dual-function wire drawing machine, which integrates two kinds of sand belt and wire drawing wheel.
Function 1. Intelligent joystick integrates one-key switching operation, which is a simple and convenient manual drawing machine. It is the best solution for uncontrollable uneven factors on the surface of large products.
Function two, the drawing wheel head can realize automatic walking, is a very practical large space automatic drawing machine, the plate is thick, good flatness products can realize automatic walking. Save worry, save effort and save labor.
The platform can be lifted up and down, and the lifting amplitude is between 350-1200. The front and rear movement of the platform is electric, and the mechanical part of the head also has the function of moving back and forth. The purpose is to form the dislocation of the upper and lower parts. The specific fixture shall be made by the demander according to the product requirements. Function 1. Sand belt drawing function
Function features: The belt can realize automatic sanding weld, or hand-held plate press the belt, auxiliary sanding grinding. The speed of sand belt can be adjusted for digital display, and the knob can be adjusted, which is simple and intuitive. The variable speed function of the sand belt is to adapt to different metal materials, thicknesses, and special circumstances of the surface, and to adjust the speed flexibly to achieve the best results.
Reminder of the sand belt function: when the speed of the sand belt is fast and the pressure force is large, the cutting speed is fast, which is conducive to the welding scar grinding.
Warm tip: When the speed is fast and the pressure is too large, the grinding surface will have high temperature phenomenon. For example: stainless steel in the surface drawing temperature continues to be too high, the surface will be yellow, when the thickness of the plate is thin, but also due to high temperature and surface deformation.
Suggestions for using the sand belt: By replacing the sand belt with different thickness, the coarse or fine long straight silk grain effect can be achieved; Using the sand belt between 60 and 120 mesh, welding scar grinding and drawing can be achieved. The grain effect can be achieved by replacing the sand belt or nylon belt with different thickness. With nylon belt or fine - grained sand belt, can play the role of wire polishing. Note: The sand belt must be cloth base type, not paper sand type.
Wheel drawing function
Function features: The drawing wheel can be manually controlled when pressed down to the surface of the product. The purpose is to solve the problem of large products. The surface smoothness is different and unstable. The drawing wheel can also automatically walk. For products with high surface smoothness, the automatic function can be used to automatically draw wire, reducing the intensity and difficulty of manual labor.
The wheel speed can be adjusted, which is simple and intuitive for digital display adjustment on the touch screen. The wheel speed limit is:
100000, recommended speed range 50,000-80000. Due to the limitation of design features, the motor used by the wire drawing wheel is a private motor, which is directly connected to the wire drawing wheel through the shaft. It is suitable for medium speed wire drawing, and the head is light, so it is not suitable for high-speed operation. It is not suitable to use strong pressure, too much force, the private service will automatically stop running, in order to achieve self-protection.
Wheel use reminder: The machine is equipped with a shaft core with diameter of 19mm × a wheel with thickness of 100mm × the limit of diameter is 150mm
Wheel use suggestion: When the product surface scratch is deep, the drawing wheel is unable to handle. Grain effect is achieved by replacing different materials and thickness. If finer grain is needed, it needs to be alternately processed from thick to fine until satisfactory grain and brightness.
Warm tip: Drawing process, is the need to pass layers of repeated, repeated processing to achieve the best results.
>>
