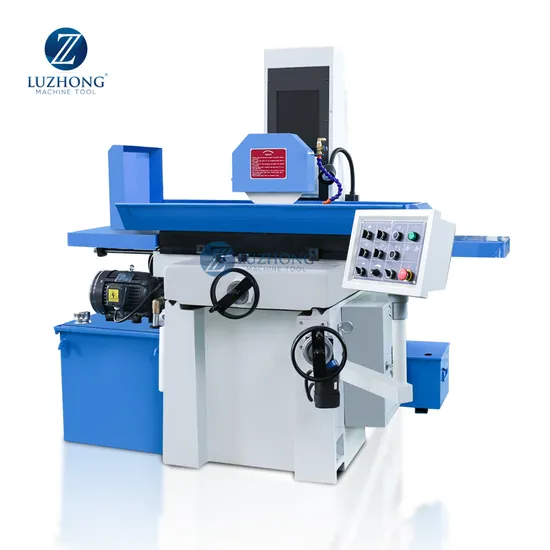

MY1022 Hydraulic Surface Grinder, Hydraulic Automatic Precision Grinder

Product Description

MY1022 Automatic Precision Hydraulic Surface Grinding Machine
Product Description
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Specifications				Units	MY1022
workbench	Worktable size (L * W)			mm	540×250
	Max. travel of table			mm	560×260
	Table T slot (slot number x slot width)			mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	φ200×20×Φ31.75
	Distance spindle center line to working table			mm	450
	Grinding wheel speed		50HZ	r/min	2850
			60HZ	r/min	3360
The amount of feed	Table longitudinal (left and right) speed			m/min	3-20
	Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	600
			Intermittent (stepless)	mm/times	0-5
			Handwheel per turn	mm	4.0
			Handwheel per lattice	mm	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	1.25
			Handwheel per lattice	mm	0.01
Hydraulic system	Hydraulic motor			kw	1.5
	working pressure			Mpa	3
	Fuel tank capacity			L	80
	Maximum flow rate			L/min	18
Motor power	Spindle motor			kw	1.5
	Cooling motor			W	40
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005
	Surface roughness			μm	Ra0.32
Machine weight		Net weight		kg	950
		Gross weight		kg	1050
External size (L * w * h)				mm	1680x1220x1720
Packing size (L * w * h)				mm	1730x1290x1940

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
