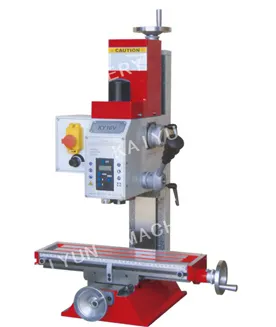

2024 Top Quality Hot Sale Repairing Tool and Machines Turret Milling Machine for Machine Manufacturing Ky16V

US$544.00-598.00 3 Sets (MOQ)

Basic Info.

Model NO.
KY16V
Structure
Desktop
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Motor
600W
Spindle Taper
Mt2
Net Weight
60kg
Drilling Capacity
16mm
Face Milling Capacity
63mm
End Milling Capacity
20mm
Table Size
400X120mm
T-Slot
10mm
Load of Table
55 Kg
Transport Package
Wooden Case
Specification
KY16V
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Features
1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
Specification
MODEL
KY16V
Drilling capacity
16mm
Face milling capacity
63mm
End milling capacity
20mm
Spindle taper
MT2
Sleeve travel
50mm
Low speed stage
50-1125 rpm
High speed stage
100-2250 rpm
Head rotation
±90°
Table size
400x120mm
X-axis travel
220mm
Y-axis travel
 160mm
Z-axis travel
210mm
T-slot
10mm
Load of table
55 kg
Motor
600W
Packing size
500x450x760mm
Net weight
60kg
Standard Accessories
Speed display
 1 set
Depth ruler
 1 set
Drill chuck 3-16mm
 1 set
Arbor MT2/B16, M10
 1 set
Optional Accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
2-way angle vise-50mm
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10*11.7mm
X-axis Power feed
