Laser Cutting Machine for Metal Sheets and Tubes Raycus Max Ipg Fiber Laser Cutting Machine for Stainless Steel and Carbon Steel Sheets and Tubes 3000W 6000W

Product Description

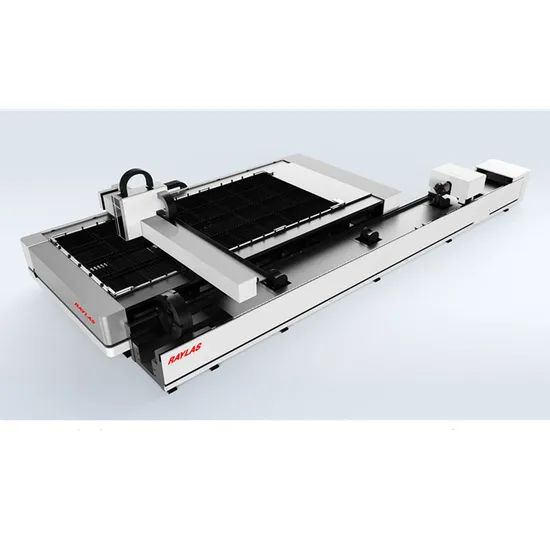

Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes Product Description
Model No.: RL-FLS3015-T60-3000W
Laser Source:1500W, 2000W, 3000W, 6000W, 12000W.
Product Parameters
1.Standard Configurations of RL-FLT3015-T60-3000W

Major Configurations	Content	Brand
Laser Generator	Raycus	Raycus 3000W
Laser Cutting Head	Auto-Focus	Raytools, Switzerland BM111
Height Controller	Capacitive transducer	BOCHU, China
CNC Controller	Cypcut/Tube-Pro
Professional Laser Cutting Software	Fscut
Speed Reducer	SHIMPO	SHIMPO, Japan
Rack and Pinion	YYC	YYC, Taiwan
Linear Guide	TBI	TBI, Taiwan
Proportional Valve	SMC	SMC, Japan
X/Y Drag Chain	IGUS	IGUS, Germany
Shield Cover	Domestic	Cangzhou, China
Industrial Water Chiller	Domestic	TongFei, China
Industrial PC and LCD Screen	Domestic	BOCHU, China
Voltage Stabilizer	Domestic	XiShun,China
Double Servo driver system	Yaskawa	Yaskawa, Japan

2.Technical Data for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes

Technical spec	Standard Data
Machine Table Total weight	7T
Total Power	31KW
Laser Type	Fiber laser
Maximum Cutting Thickness	Sheet:20MM Mild steel, 12MM Stainless steel Pipe: 14MM Mild steel,8MM Stainless steel
Effective Cutting size	Sheet:1550x3080MM Round Pipe:20MM-220MM Square Pipe:150MM*150MM
Sheet Cutting X.Y Axis Drive system	Rack and Pinion mode, Japan Yaskawa Servo system X 1.3KW Y1 Y2 1.8KW
Tube Cutting W,Y Axis Drive system	Rack and Pinion mode, Japan Yaskawa Servo system W1 W2 1.3KW Y 1.8KW
Laser cutting head Drive System	Ball screw mode, Japan Yaskawa servo system 400W
Laser cutting head lifting distance	200MM

3.Technical Accuracy for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes

Maximum rapid X,Y Axis Speed	120m/min
Maximum Acceleration X,Y Axis Speed	1.2G
Position Accuracy	0.02mm/M
Repeat Accuracy	0.03mm/M
Cooling Style	Recycling water
Max loading weight of sheet cutting table	1500KG
Max loading weight of tube cutting table	170KG
Assistant Gas	Oxygen/Nitrogen/Compressor Air
Continuous Working Time	24 Hrs

4. Equipment Working Condition for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes

Sub item	Item	Requirements	Notes
Power	Laser Source	10KW	The total installed capacity is not less than 31KW, And this machine need very good ground line.
	Chiller	5.7KW
	Machine Servo System	10KW
	Dust blower Motor	3.8KW
	Other accessories	1KW
	Stability of 3-phase power	380V±5%
	Instability of 3-phase power	<2.5%
	Earthing	<4Ohm
Water	Water for Chiller	Distilled water without minerals	Change every month
Gas	Cutting Gas	N2>99.5%	The processing parameters
		O2>99.5%
		AIR pressure should not less than 1MPA
Working	Temperature requirements	5-40 Degree
	Humidity requirements	Less than 70%
	Foundation requirement	There should be no vibration source nearby	If there is a vibration source on site or nearby, the user is required to dig an anti-vibration trench around the foundation
Work piece	For CS and SS: quality surface and no rust

5. Laser Source for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes
We can equip the Raycus laser source or Max laser source with the laser cutting machine.
6.Laser Cutting Head for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes Switzerland imported laser cutting head Raylas customized. Auto Focus function (software control focus) Anti-collision function with non-contact Capacitance sensor Breakpoints Cutting Quick and Convenient part changing

7. Laser Cutting Software for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes
Cypcut Operating System (Higerman):
A simple visual operating system that allows for intuitive adjustment of laser power, gas type, and pressure; Automatic positioning; NC file import support, flexible process, image display, and simple operation The special processing system for H-shaped steel is easy to install, simple to operate, excellent in performance, complete in process solutions, realizing stable and high-precision cutting, integrating a powerful data process library, and bringing users a simple, convenient, and efficient intelligent experience
Nesting Software: supports all Tekla building software, intelligent nesting, reporting function, unlimited upgrades, and supports the WIN10 system. Intelligent temperature control, constant temperature guarantee.
8. Front Chuck and Back Chuck
For sheet and tube cutting machine, there are four types of chucks:
220mm, 240mm, 320mm, 350mm, etc.
Back Chuck System
Pneumatic Clamp:
Operate Mode: The four claws are controlled by pneumatic system which is intelligent and convenient.
Features:
1. It's easier to clamp any different kinds of pipes without any adjustment.
2. Travel distance: 0mm to 220mm. All of the axle can be adjusted easily according to pipe diameter. 3.The clamp pressure is able to adjusted, any thickness pipes can be non-damage clamped.
Sum: Save time, Save cost, Operate easily, More efficient!
Front Chuck System
Pneumatic Clamp:(0-220MM)
Operate Mode: The four claws are controlled by pneumatic system which is intelligent and convenient.
Features:
1. No matter square pipe or circular pipe, the claws can be adjusted easily according to pipe diameter.
2. Adopt fully enclosed design, effectively prevent smoke and dust from entering during cutting.
3. A large number of parts are designed with aerospace aluminum, which reduces the weight of the chuck, increases dynamic performance and rotational stability.
4. One-button clamping, easy to use and improve production efficiency.
9. Sheet & Tube Cutting Samples
10. Factory Pictures
If you want to know more, please feel free to contact us, we will reply you asap.

---
