Full Automatic Low Price 16 24 32 48 72 96 Cavities Hot Runner Pin Valve Gate Pet Preform Making Injection Molding Machine

Product Description

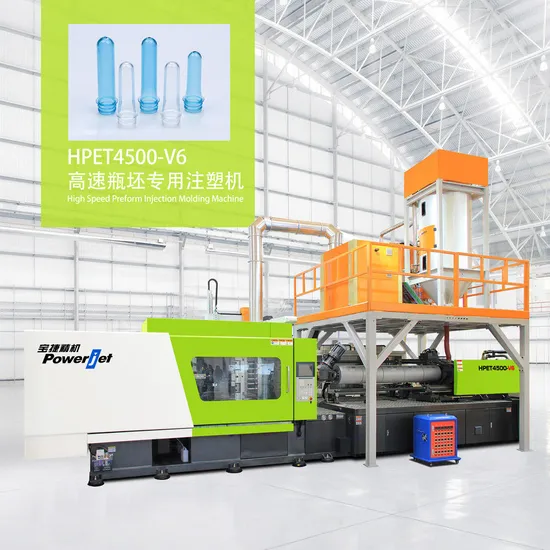

HPET HIGH-SPEED PREFORM INJECTION MOLDING MACHINE
Our company provides a comprehensive and mature solution for PET preforms, including more than 50 special injection molding machines for PET preforms with an injection volume of 800-6000g.

Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform

FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
Product Description

Company Information

	DESCRIPTION	UNIT	HPET4500-V6
CLAMPING UNIT	Clamping force	KN	4000
	Opening stroke	mm	710
	Max.datlight	mm	1440
	Platen size	mm	740*720
	Space between bars	mm	1050*1050
	Max.mold height	mm	730
	Min.mold height	mm	300
	Ejector stroke	mm	210
	Ejector force	KN	184
INJECTION UNIT	Screw diameter	mm	105
	Shot volume	cm3	3897
	Screw stroke	mm	450
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	45+55
	Heater power	KW	40

Packaging & Shipping
Our Services

Please feel free to consult us to know more information.
Thanks~

---
