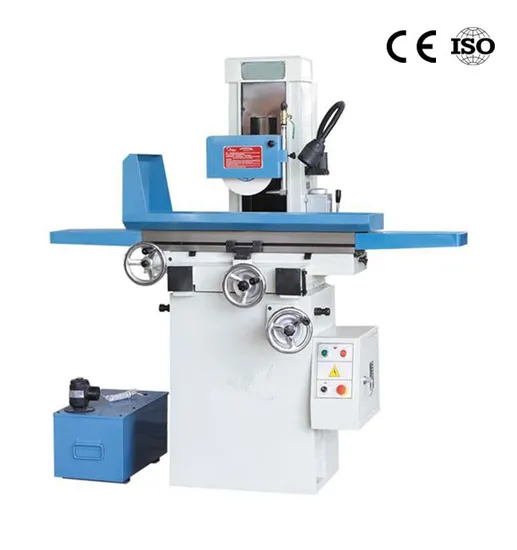

| Specifications | | M618A | M820 | M1022 |
| Table Size (LxW) | | 460x180mm | 480x200mm | 540x250 |
| Max movement of working table (LxW) | | 500x190mm | 530x220mm | 560x260 |
| T-Slot number×width | | 1x14mm | 1x14mm | 1x14 |
| Max distance from spindle center to table surface | | 335mm | 440mm | 420mm |
| Wheel size (Outer diameter×Width×Inner diameter) | | 180x13x31.75mm | 200x20x31.75mm | 200x20x31.75mm |
| Wheel speed | 50HZ | 2850r/min | 2850r/min | 2850r/min |
| 60HZ | 3440r/min | 3440r/min | 3360r/min |
| Vertical feed on handwheel | Per revolution | 1.25mm | 2.5mm | 4.0mm |
| Per graduation | 0.01mm | 0.02mm | 0.02mm |
| Cross feed on handwheel | Per revolution | 2.5mm | 1.25mm | 1.25mm |
| Per graduation | 0.02mm | 0.01mm | 0.01mm |
| Spindle motor | | 1.1KW | 1.1KW | 1.5KW |
| Coolant pump motor | 40W | 40W | 40W |
| The parallelism of working surface to base level | 300:0.005mm | 300:0.005mm | 300:0.005mm |
| Surface roughness | Ra0.32μm | Ra0.32μm | Ra0.32μm |
| N.W./G.W. | | 650/750kg | 750/850kg | 850/950kg |
| Packing size | | 100x115x176cm | 114x125x194cm | 120x140x194cm |
