Xe470d 50 Ton Crawler High Reach Demolition Excavator

Product Description

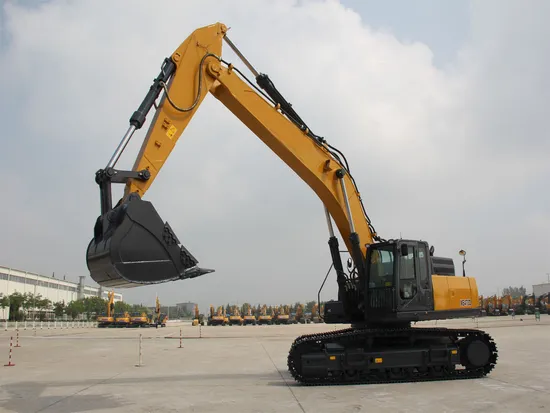

XE470D hydraulic excavator is one of the leading models of large excavators launched by XG excavator department. The product integrates the valuable experience gained by XG from years of research and development of excavator products, and adopts advanced design and manufacturing methods. Meanwhile, the product adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection", and has perfect mine operation ability.

1. Ecological and economical
* Professional customized engine greatly improves fuel economy.
* Hydraulic oil flow regeneration system ensures optimum machine performance.
* Independent cooling system automatically adjusts fan speed.
2. Multiple applications
* Different boom, arm and bucket combinations can adapt to as many working conditions as possible.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting.
* Instantaneous pressurization function copes with complex working conditions.

3.Comfortable operating experience
* Air Conditioner and Heator ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspending seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
* ROPS and FOPS Cab can improve cab safety.
Product Paramenters

Model		Unit	XE470D
Operating Weight		kg	46900
Bucket Capacity		m³	2.2-2.5
Engine	Model	---	QSM11-C335
	No. of cylinders		6
	Rated power/swing speed	kW/rpm	274/1800
	Torque/swing speed	N.m/rpm	1790/1400
	Displacement	L	11
Main performance	Travel speed(H/L)	km/h	5.4/3.2
	Gradeability	%	70
	Rotary speed	r/min	9
	Ground pressure	kPa	83
	Bucket digging force	kN	287
	Arm digging force	kN	221
	Travel traction force	kN	338
Hydraulic System	Main pump	--	K5V200DTH
	Rated flow	L/min	2×360
	Main safety valve pressure	MPa	31.4/34.3
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	725
	Hydraulic tank capacity	L	430
	Engine oil capacity	L	38
Appearance	Total length	mm	12090
	Total width	mm	3582
	Total height	mm	3860
	Width of platform	mm	2995
	Length of crawler	mm	5353
	Total width of chassis	mm	3582
	Width of crawler	mm	600
	Wheel base of crawler	mm	4292
	Track gauge	mm	2750
	Ground clearance of counterweight	mm	1324
	Min. ground clearance	mm	519
	Min. rear-end swing radius	mm	3800
Working scope	Max. digging height	mm	10812
	Max. dumping height	mm	7533
	Max. digging depth	mm	7881
	Max. digging depth at the range of level 8 feet	mm	7700
	Max. vertical digging depth	mm	6870
	Max. digging radius	mm	12066
	Min. swing radius	mm	4802

---
