Automatic Tape/Band/ Tube/Pipe/Belt Cutting Machine

Product Description

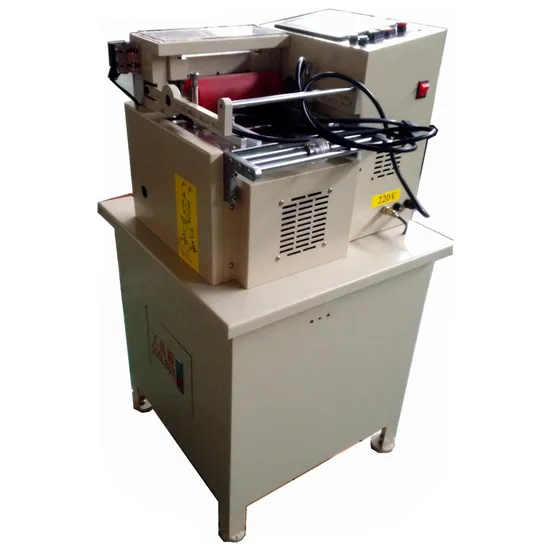

DP-105 Computer cutting machine
Functional characterisitics:
Full computer control ,Numerical settings for length cutting ,Easy operation and low materials lost ,Production quantity counting device ,Pneumatic driven cutting blade with high pracision ,Zero degree to 45 angle adjustable ,Square ,single oblique and two-ways oblique cutting shapes.
Scope appliable :
Precision cutting of nyon beltings ,PVC ,plastics ,wire streth ,safety belt ,adhesive coated fabrics ,duct cover ,fabric webbing ,elastic webbing ect.

model	DP-105	DP-101A
Voltage	110V220V	110V220V
power	1/2HP	1/2HP
Net weight	85KGS	80KGS
Gross weight	150KGS	150KGS
Volume	65*80*120CM	65*80*120CM
cutting length	1MM-100.000MM	1MM-100.000MM
cutting width	1-75MM	1-160MM
Feeding speed	20.000MM-120.000MM/MIN	20.000MM-120.000MM/MIN

Features:
1. The max width: 160mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
Bobbin feeder for belt cutting machine :

Video http://youtu.be/9tx8qZ48LfA?list=UUKzn2_YUjZc_nkjjFRC07NQ
Rope hot cutting http://youtu.be/ojjHrj9W13g?list=UUKzn2_YUjZc_nkjjFRC07NQ

---
