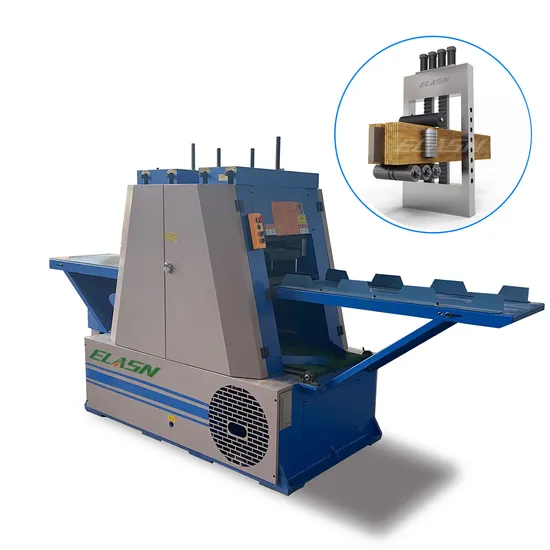

Heavy-Duty 22kw Electric Motor Frame Saw Cutting Machine for Sale

Product Description

Product Description
Thin-cutting frame saw machine are used in the production of veneer slats/lamellae for the wear layers used on engineered flooring, stiles and rails, etc. The frame saws use multiple, thin blades that produce a smooth finish.
Because of the thin kerf blades, the frame saw is able to cut accurate veneer slats with less waste (up to 30%), ie. This is especially important when cutting more expensive woods such as oak, mahogany, maple, cherry and other exotic species. awdust Briquette Pressing Biomass Briquette Machine for Sale
Product Parameters

Model	ELA-20	ELA-25	ELA-30
Max. cutting diameter(mm)	200	250	300
Min. cutting diameter(mm)	80	80	100
Kerf size(mm)	1.2-1.8	1.2-1.8	1.2-1.8
Main motor power(kw)	18.5	22	22
Main motor rotation speed(rpm)	1460	1460	1460
Feeding motor power(kw)	1.5	2.2	2.2
Feeding speed(m/min)	0.1-2	0.1-2	0.1-1.5
Frame saw stroke(mm)	210	210	240
Working times(times/min)	465	465	350
Blade length(mm)	500	550	610
Air pressure(mpa)	0.5-0.8	0.5-0.8	0.5-0.8
Size(m)	5*1.2*1.9	5*1.2*2	5*1.3*2.5
Weight(t)	2	2.3	2.8

Product Features
1. Installation of Multiple Saw Blades: Within the cutting range, the machine can accommodate multiple saw blades according to the thickness requirements of the processed boards. This allows for cutting multiple pieces of wood with different thicknesses at once.2. Excellent Blade Tension: The saw blades are tightly tensioned, ensuring high cutting precision and good surface quality of the sawn materials.3. High Production Efficiency: By eliminating the need for multiple positioning, clamping, and side feeding operations, the machine reduces auxiliary time and eliminates idle travel, resulting in high production efficiency.4. Low Labor Intensity: The frame saw machine has low labor intensity due to its good performance, making it suitable for operators with varying levels of technical expertise.5. Simple Production Process and Small Footprint: The machine has a simple production process, occupies a small area, and saves investment costs. Detailed Photos

Product Display
Company Profile
Henan Elasn Machinery Equipment Co., Ltd is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
Elasn focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. Elasn's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of Elasn welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
