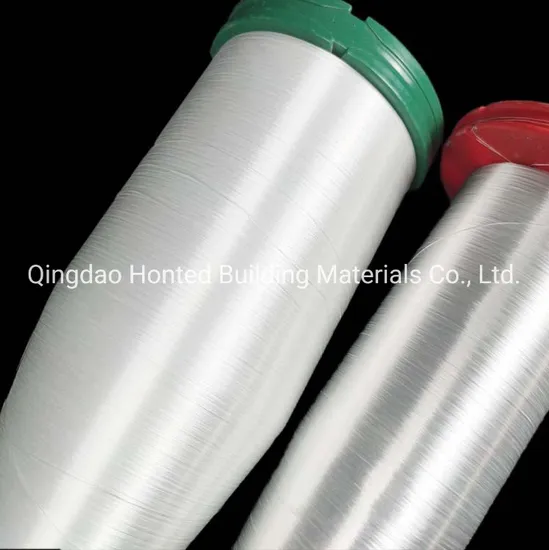

Fiberglass Roving / Glass Fiber Yarn for Prepreg

Product Description

Product Description
ECR Roving for Prepreg is compatibel with epoxy,isocyanate resin, polyimide,bismaleimide,and phenolic resins.Prepreg products can be widely used in helicopter, golf clubs,badminton posts,fishing pole and other sport equipments
Features
Even tension
Even tapability and no twists
Fast and complete wet-out
Low fuzz
High mechanical properties
Product Parameters

Products code	Linear Density Tolerance	Moisture content	LOI	Tensile strength	Filament of Diameter
ECR13-300-612	±7	≤0.10	0.40-0.70	≥0.40	13
ECR16-600-612	±7	≤0.10	0.40-0.70	≥0.40	16
ECR16-1200-612	±7	≤0.10	0.40-0.70	≥0.30	16

Packaging & Shipping
The product can be packed on pallet or in small cardboard boxes.

Package height mm (in)	260(10)	260(10)
Package inside diameter mm(in)	100(4)	100(4)
Package outside diameter mm(in)	270(10.6)	310(12.2)
Package Weight kg(lb)	17(37.4)	23(50.7)

Number of layers	3	4	3	4
Number of doffs per layer	16		12
Number of doffs per pallet	48	64	36	48
Net Weight per pallet kg(lb)	816(1797.3)	1088(2396.5)	828(1825.4)	1104(2433.9)

Pallet Length mm(in)	1120(44)		1270(50)
Pallet Width mm(in)	1120(44)		960(37.8)
Pallet height mm(in)	940(37)	1180(46.5)	940(37)	1180(46.5)

Storage
Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.
To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.
Application
FAQ
1. What is your terms of packing?
Generally, we pack our goods in carton with pallet
2. What is your tems of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight
4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
7. Do you test all your good before delivery? Yes, we have 100% test before delivery
