Cutting-Edge Grinding Machine with Permanent Magnet Chuck and Syntec CNC

Product Description

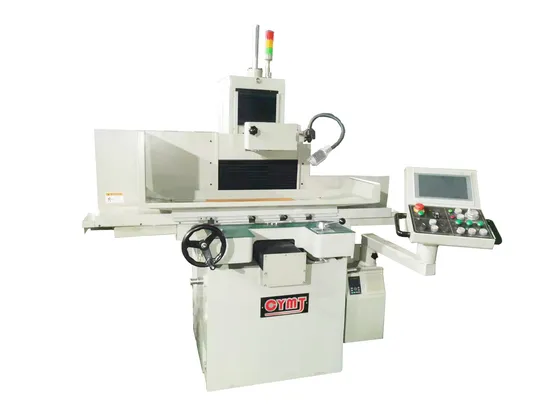

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
Our commitment to excellence propels us to rigorously enhance every facet of our products. We retain the flexibility to adjust specifications, mechanics, and designs at our discretion, ensuring we meet the dynamic market demands without prior notice or imposed obligations.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd., situated in Dongguan City, Guangdong Province, is imbued with the essence of Taiwan's 30 years of expertise in grinding machine manufacturing. Our team consists of seasoned technical professionals, embodying a legacy of technological prowess. As CNC machine tools evolve, they are steering towards new horizons marked by high-speed, precision, and versatility. The future is defined by composites, intelligence, openness, parallel drive systems, networking, and environmentally sustainable solutions, setting the stage for advanced development in CNC technology. Dongguan Chengyu Machinery Technology Co., Ltd. is a distinguished entity in the realm of machine tool production and accessory processing. Guided by a philosophy rooted in 'technology, innovation, and reliability,' we adhere to a meticulous quality policy. Our mission is to deliver superior products and customer-centric services. Starting with an in-depth analysis of our customers' processes and technological needs, we enhance our product applicability and expand the numerical control industry's scope. Through precise product positioning, we achieve unparalleled automation, precision, and quality, supported by a scientific quality management system and exceptional technological capabilities. Recognizing market dynamics, Chengyu Machinery excels in crafting high-precision CNC surface grinding machines, CNC forming machines, plus four-axis punch grinders and more. Our repertoire extends to industrial robots, automated production lines, and comprehensive integrated applications. Below is an overview of our CNC grinding machine series: I. HS Series: Models 618 / 250 / 3060 / 4080 / 40100 (available in servo and hydraulic types) Processing Capacity: Excels in surface grinding and grooving tasks. Features an innovative patented hydraulic control system (specific to hydraulic models) Functionality: Comes with a grinding program tailored for flat surfaces and groove cutting. Feed Mode: Choose from front, back, left, or right, with each grinding program memorizing its feed mode. Advanced protection with automatic shutdown upon grinding wheel overload. II. Available in both servo and hydraulic variants Processing Capacity: Masterfully handles surface grinding, grooving, and complex scheduling. Equipped with a patented hydraulic control system (specific to hydraulic models) Functionality: Loaded with diverse grinding programs such as surface grinding, groove cutting, sole and side grinding, plus varied displacement grinding for unequal distances and depths. Grinding Wheel Dressing: Automates dressing of the bottom plane according to preset rough and fine grinding intervals, ensuring timely dressing and compensation during the grinding cycle. Feed Mode: Opt from front, back, left, or right, with each program retaining its specific feed mode. Supports grooving at equal and variable distances, accommodating unequally spaced patterns. 3. Four-axis CNC grinding machines are categorized into horizontal and vertical forms. Processing Types: Offers arbitrary equal division and skipping tooth processing. Waist Circle: Simply input AB size for precise results. Triangle Fillet: Input the inscribed circle size B along with fillet size R for accuracy. Quadrilateral Fillet: Specify side lengths A and B, plus fillet size R for exact outcomes. Eccentric Circle: Input the degree of eccentricity alongside starting and ending diameters for precision crafting. Circular processing: Simply input the starting and ending diameters to initiate a seamless and precise operation, ensuring optimal performance. Arc configuration: Effortlessly enter the arc size and desired rotation angle to achieve immaculate results with precision and ease. Advanced mechanics: Accurately manage step differences, rotation profiles, and more with unparalleled precision and efficiency. Streamlined operations: Save your processing schedule as a file for effortless retrieval and seamless execution in future tasks.

---
