Basic Info.
Required Paper
Single and Double Side PE Coated Paper
Logo Printing
Without Logo Printing
After-sales Service
12 Month
Transport Package
Wooden Box by Sea
Production Capacity
2000 Sets/Year
Product Description
YB-WT70
------Quotation: YB-WT70 Double Wall Paper Cup Machine FOB Ningbo. ------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external ------Delivery time: 30 days after receive the payment of deposit ------Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance ------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer ------Installation: we will send 1 technicians for machine's installation and debugging according to customer's requirement; the technician's board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD100.For each technician/one day, estimate 5-7 working days ------Guarantee period: Guarantee period is 12 months after getting the machine ------The supplier shall provide the service:(after pay the machine) ------the supplier to send adjustment of installation and commissioning ------the supplier direct buyer's technical personnel operating the machine ------The buyer shall provide the facilities and preparations:(Delivery machine to finish) ------foundation and adapter power supply water and compressed air pipe and related projects
Brief Description

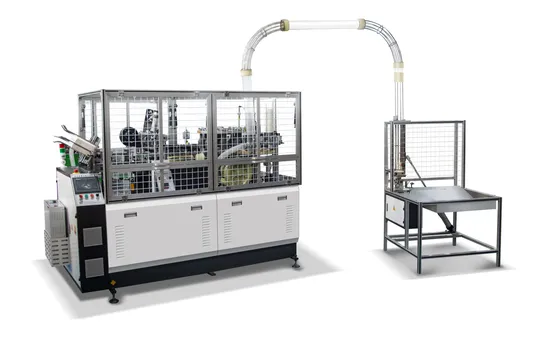

YB-WT70 high-speed double wall paper cup forming machine is a multi-station high speed paper cup making equipment, mainly utilized for making the outer-sleeve of paper cups and paper bowls. The paper cup former is installed with a frequency converter, forming and sealing equipment and other devices, thereby realizing a huge output.
Samples
Main Technical Specification
| Paper Cup Specification | 4-12oz (mold exchangeable) |
| Paper Specification | 150-350 GSM single/double PE coated paper |
| Production Capacity | 70-90pcs/min |
| Power Source | 380V 50HZ 3Phases |
| Average Power | 5KW glue box 3.8KW |
| Air Supply Requirement | Air pressure:0.4 Mpa Air out-put:0.6cbm/min |
| Total Weight | 1700KG |
| Package Size | (L*W*H): 2350*960*1700mm |
