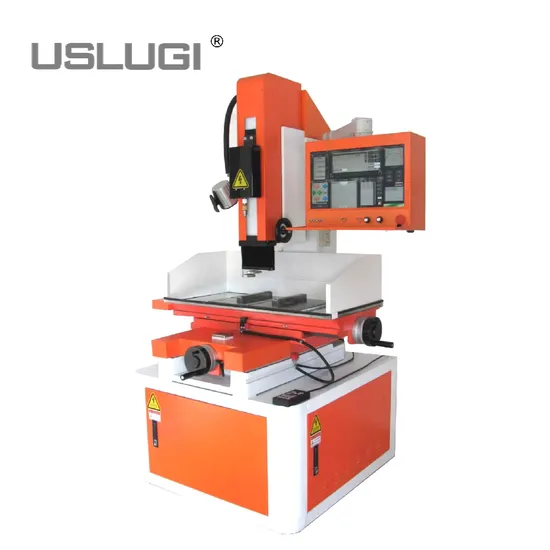

Small Hole EDM Drilling Machine CNC EDM Hole Popper EDM Drilling Machine Nc300

Product Description

Product Description
Uslugi CNC Small Hole EDM Drilling Machine.
1.Adopt UHD 19-inch UHDcomputer monitor.
2.It can be used to producevarious conductive materialslike stainless steel, quenchingsteel, hard alloy, copper,aluminum and so on.

3. Low power consumption,process 0.2-3mm hole, and themaximum diameter depth canreach over 300mm.

4.Digitalize the processing parameters. Abandon the tradition DIP switch,thus Low failure rate, simple and convenient.

5. The countertop adopts exquisite marble countertop, which is pressure-resistant, nice and generous.
Product Parameters

Items	Unit	NC300
Diameter of electrode	mm	φ0.2-φ3.0
Spindle stroke	mm	350
Spindle servo stroke	mm	350
Maximum speed of spindle	mm/min	120
C axis of rotation	rpm	220
Worktable size	mm	400x500
Table travel(X*Y)	mm	350x450
Max distance form guider to worktable	mm	300
Height of worktable	mm	920
Max current	A	30
Max power input	kw	2.5
Water tank capacity	L	25
Work liquid filtering		Wire-wound filter
Max working fluid pressure	Mpa	10
Machine dimensions	mm	1200x1500x2000
Machine weight	Kg	850

Detailed Photos
FAQ
1.How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.You can also send us the products drawing ,we will choose the most suitable machines for you.
2.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Milling Machine ,Vertical Machining Center ,Engraving and Carving Machine,Drilling and Tapping Machine ,Drilling EDM Machine,Die Sinking Machine,Wire Cutting EDM and so on.
3.What's your warranty?
A:Free one-year warranty and lifetime service for the entire machine.
4.When is the delivery time?
A:We can deliver stocked machines within 15 business days and afterreceiving full payment.
5.What is the packing of the machine?
A:The standard packaging of the machine is wooden pallet plastic film.
