US$4,000.00-9,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Width of Sheet
600-1700mm
Type of General Rubber Machinery
Rubber Sheet Cutting Machine
Product Name
Rubber Slitting Machine
Structure of Blade
Fixed or Adjustable
Transport Package
Standard Wooden Case
Specification
National standards
Production Capacity
30sets/Month
Product Description

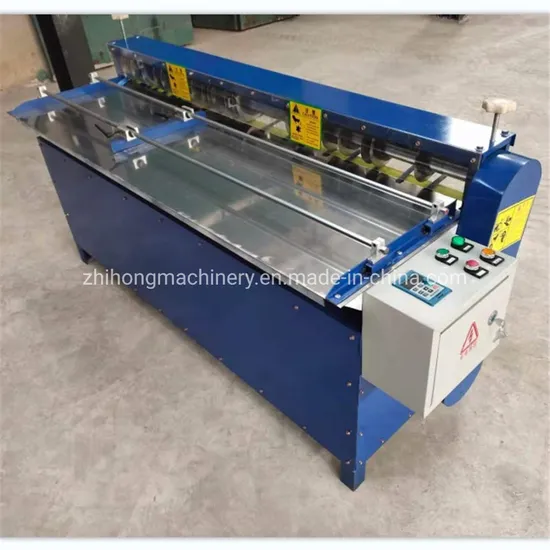

Rubber Sheet Belt Splitting Slitting Cutting Machine With Adjustable Blades
Descriptions:
Rubber Sheet Splitting Machine is composed of circular cutter, cutter spindle, cutter bottom shaft, main power reduction all-in-one machine and other important modules.
It can cut all kinds of rubber materials and other non-metallic materials, high cutting precision, straight and beautiful blade.
Technical parameters:
| Working width | Cutter shaft | Motor power | Max. Cutting thickness | Control mode |
| 1600mm | φ60mm | 3.0KW Slow down a whole | 25mm | Frequency control |
| Blade size | Blade material | Min.Slitting width | Cutting speed | Cutting tool structure |
OD130mm Thickness 2mm | High speed steel 9255 | 20mm | Adjustable | Surrounded by type |
Products pictures:
The fine grinding shaft is assembled with the encircling-type knife apron, the cutting effect is very good, the knife edge is flat and straight, not deviating:
Package& Delivery:
Features:
1.Min.Slitting width 20mm, blades can be adjustable.
2.Rubber material hardness can be more than 70 shore A, can cut perfectly.
3.Encircling-type knife apron structure, the cutting effect is very well.
4.Blade material is high speed steel 9255, long service life.
>>
