Hcr80K Tamping Rammer, Tamper Rammer Machine

Product Description

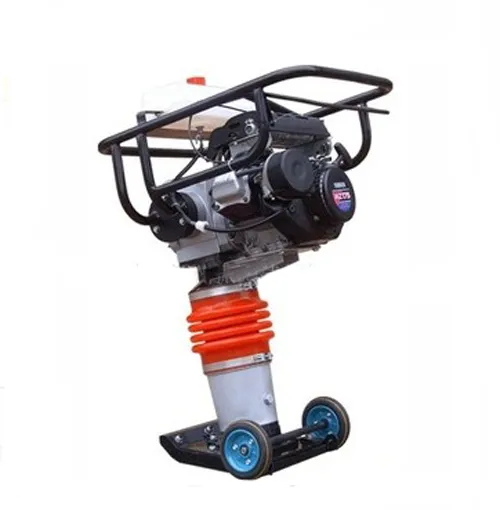

HCR80K Tamping rammer:
Tamping rammer is widely used in the embankment of the highway, municipal, railway engineering, compaction and maintenance of the slope, and can also be used for bridges, reservoirs, dams engineering foundation compaction, as well as the construction of trenches, culverts, indoor courtyard and narrow ground. Not only compacted sand, gravel, clay, and also asphalt pavement compaction.
Features and advantages:
1 stroke adjustable compaction of soil and asphalt pavement.
2 large enclosed air filter system, easy to clean, the engine to be easily damaged.
3, the specially designed silencer cover can reduce the noise generated by the engine and a bottom plate to pass operating personnel.
4, the damping guide handle can reduce operator fatigue.
5, ductile iron base plate has a longer life.
6, hermetically sealed, splash lubrication impact system to ensure reliable lubrication parts.
ModelHCR80K Tamping rammer with Honda/Lifan/Robin EngineHCD80 Tamping rammer with electric engine
Engine ModelGX160 Engine220V Electric engine
Power of engine5.5Hp2.2KW
Impacting Force10000 N10000 N
Impacting Frequency450~650 Times per min450~650 Times per min
Working Speed10~13 m / min10~13 m / min
Leaping height40~65 mm40~65 mm
Weight88 Kg80 Kg
Plate Size300mm × 330mm300mm× 310mm
Packing Size610mm × 520mm × 970mm630mm× 540mm× 970mm

---
