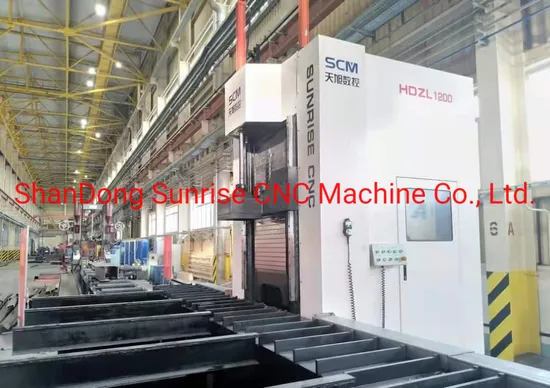

China Manufacturer One-Spindle High Speed CNC H Beam Drilling Machine

Product Description

Application:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Specifications:

Model	HDZL1200	HDZL600
The process size H beam, mm	1200x600	600x600
Max. Length of work piece, m	14(by customer's request)
Max. Drilling thickness, mm	100
Taper hole of spindle	BT40	BT40/BT50
Drilling speed, rpm	30-3000
Feeding mode of spindle, mm/min	0-4000
Max. Drilling diameter, mm	φ40	φ40/50
Quantity of axis	3
CNC system	SIEMENS CNC 808D
Weight , t	About 30	About 24
Overall size, mm	About 16000 x 4000 x 3600	About 18800 x 4200 x 4200

Packing & Delivery
Packing Details : Seaworthy Packing;
Delivery Details : 60-90 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Factory
After-sale service
India and some other countries could provide to door service now, for cannot send engineers to install machines at site due to force majeure, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Our Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2008 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
