Product Details
Product Description
Product Description
Brand:ABB

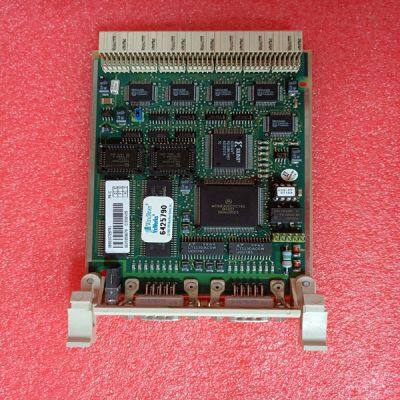

Type:CI532V05 3BSE007297R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
CI865 and TP865 – Satt I/O Interface Key Features • Provides one ControlNet port, (a BNC connector located on the TP865 Baseplate). • Simple DIN-rail mounting. • Handles I/O scanning of up to 31 distributed I/O nodes. • Pre-set, two-letter Alpha code locking device installed in unit base prevents mounting of incompatible components. • Supports Hot swap. Description The CI865/TP865 connects ControlNet to AC 800M. The module makes it possible to use older Satt I/O system (Rack I/O and Series 200 I/O) with the AC 800M controller platform but it can not be used as a general ControlNet interface. The TP865 Baseplate has one BNC connector for connecting I/O racks. The baseplate has a code lock, see Table 4 on page 75, that prevents installation of an incorrect type of unit onto the TP865 Baseplate. The CI865 expansion unit contains the CEX-Bus logic, ControlNet bus logic, CPU and a DC/DC converter that supplies appropriate voltages from the +24 V supply, via the CEX-Bus.
Designation/Color Function Neither R(un) nor F(ault) LED’s are ON The CI865 unit is in the process of being configured. Allow time for this to finalize. If the condition persists, and no other unit LED on the CEX-Bus is lit: • Check the CEX-Bus fuse inside the PM8xx processor unit • Initiate a reset signal (INIT) from the PM8xx processor unit • Replace the CI865 unit F(ault) LED is ON The CI865 unit is in the process of being restarted. Allow time for this to finalize. Replace unit if the condition persists. COM A/COM B LED is OFF Power OFF or Reset Mode COM A/COM B LED is solid green Channel OK COM A/COM B LED is flashing green Temporary error or need initial setup COM A/COM B LED is solid red Module is broken, has to be replaced COM A/COM B LED is flashing red Bad channel cable COM A/COM B LED is railroad red The road is not configured right for the network COM A/COM B LED is flashing red/green Network has data flow problem COM A/COM B LED is railroad red/green Self test
>>
