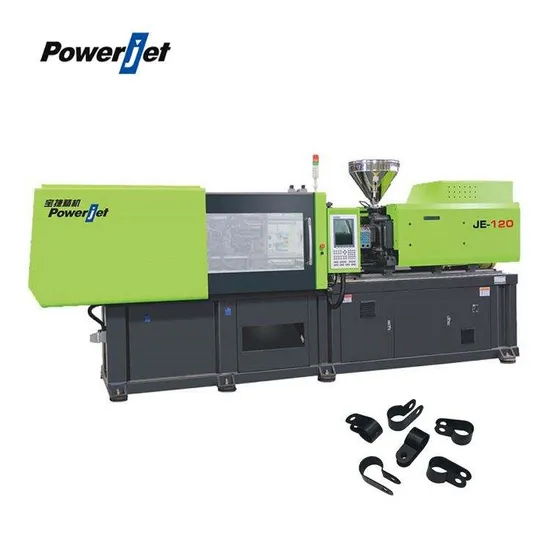

Powerjet 120t Je120 Full Electric Injection Molding Machine HDPE New Design Productivity High Speed

Product Description

Full ELECTRIC INJECTION MOLDING MACHINE
Powerjet All-Electric Injection Molding Machine with servo drives is suitable for manufacturing high precision products like: medical appliances, optical lens, gears, digital accessories and so on.
Clamping Force: 600~3500(KN)
Driving System: All Electric
Motor Type: Servo
Applications: Precision Plastic Product Like: Medical Appliances, Optical Lens, Gears, Digital Accessories, etc.

FEATURES
1:Energy Saving
Compare to the traditional hydraulic injection molding machine, Powerjet all electric series only take 35% of the energy consumption.
2:Synchronized Drives
By using synchronous movement, circle time is greatly shortened, thus easily realizing high efficiency production.
3:Compression Molding
It's possible to freely program the mold movements to synchronize with the injection movements.
4:Fast Response
High response servo motor, high rigid power unit, superior injection response and holding force, ensure the quality and consistency of products.

CLAMPING SYSTEM
-Short Circle Time, High Precision, High Rigidity, High Durability
High control precision of servo motor torque, and rigid connection of the ball screw and clamping system, correspondingly improve the mold opening/closing speed and position accuracy, and ensure an accurately platen moving thrust, and displacement deviation generated by platen movement inertia is under controlled, and the reliability and response accuracy of the action of low pressure mold protection is greatly improved. Safe security of using precision mold becomes better.

INJECTION SYSTEM
Adopting four-column-frame structure and guided by four guide posts, the screw has an evenly balanced force during the process of injection, thus achieving steady injection molding.

Product Description

	DESCRIPTION	UNIT	JE-120
CLAMPING UNIT	Clamping force	KN	1200
	Opening stroke	mm	360
	Max.datlight	mm	150
	Platen size	mm	700*700
	Space between bars	mm	470*420
	Max.mold height	mm	450
	Min.mold height	mm	150
	Ejector stroke	mm	100
	Ejector force	KN	30
INJECTION UNIT	Screw diameter	mm	40
	Screw L/D Ratio	L/D	20
	Injection Pressure	MPa	162
	Shot volume	cm3	182
	Screw stroke	mm	145
