Banbury Rubber Mixing Mill

Product Description

Banbury Rubber Mixing Mill
1. Application
The machine is to be used for raw rubber cracking and scrip rubber cracking in rubber reclaim industry.
2. Use for:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet.
Structure:

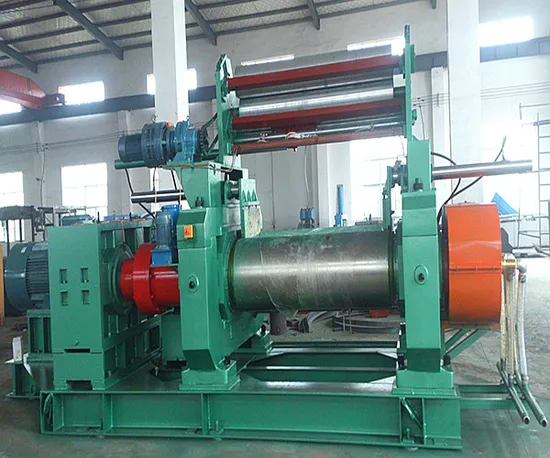

This machine consists of Base, Rack, Gland, Rollers, Bearing, Transmission device, Lubrication device, Decelerator, Adjustment device of the roller temperature, Emergency shutdown device and brake rigging and etc.
3. Features:
1'Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife: High hardness(68-75HSD) and wear-resistant;
2'The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request, Circulation of steam and cooling water is provided through the rolls to control the temperature;
3'There are two kinds of Nip adjustment mode for option: Manual or electric;
4'There are three kinds of Main bearings for option: Bearing or Copper bush or Nylon bush;
5'Machine will be tripped off if overloaded to protect valuable electrical circuit;
6'All electrical connections are well, short circuits is impossible by any means.
7'It can be with Stock Blender, or can provide provision to fit stock blender in future.
8'Provision for opening of Nip Guard is provided for the purpose of cleaning of rollers and nip;
9'Hand Operated Safety Switch is provided;
FAQ:
1. Q: Are you a factory or trading company?
A: We are factory.
2. Q: Where is your factory? How can i visit?
A: Our factory located in qingdao city. You can fly to qingdao liuting airport, then we can pick you up to our facotry to visit. Warm welcome visit us.
3. Q: How does your factory control the quality of machines and after sales service?
A: Our machines passed CE, BV, ISO, SGS certification, pls confirm the quality. All our machines have 1 year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all electrical Installation, water installation, civil foundation, training their people and proving that they will get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine configuration in order to get the production targets is the most important point. Even if somebody got the cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the durability of the machines so to cover the investment in the correct time.
(1)Train how to operate and maintain the equipment, we can also offer a house call to install and debug
(2)Provide the formers of many specifications, and we can make according to your demand.
(3)Guarantee to keep the machine in good repair.

Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380*860 *1320	3400*1500 *1800	3580*1550 *1695	4350*1850 *1785	5200*2380 *1840	5845*2284 *1978	7465*3662 *2080

---
