PVC Wood-Plastic Profile and PVC Decorative Marble Sheet Extrusion Line Machine Twin Shaft Extruder Equipment for Plastic Recycling Production

Product Description

UPVC/CPVC PIPE EXTRUSION LINE

MODEL	PIPE DIAMETER (MM)	HOST MODEL	MIAN MOTOR POWER (KW)	MAX SPEED (RPM)	MAX CAPACITY (KGH)
DLGC40-2	φ16-φ40	SJZ51/105	18.5 AC	10	120
DLGC63-2	φ20-φ63	SJZ65/132	37 AC	15	250
DLGC63	φ20-φ63	SJZ51/105	18.5 AC	15	120
DLGC160	φ50-φ160	SJZ65/132	37 AC	8	250
DLGC200	φ63-φ200	SJZ65/132	37 AC	3.5	250
DLGC315	φ160-φ315	SJZ80/156	55 AC	2	350
DLGC630	φ315-φ630	SJZ92/188	110 DC	1.2	800
DLGC800	φ560-φ800	SJZ105/216	160DC	1.3	1100

LARGE DIAMETER HDPE WASTER SUPPLY AND GAS SUPPLY PIPE EXTRUSION LINE

MODEL	PIPE DIAMETER (MM)	HOST MODEL	CAPACITY (KGH)	TOTAL INSTALLED POWER (KW)
DLDKJ-800	φ450-φ800	SJ120/33 SJ150/33	1000-1300	600
DLDKJ-1000	φ630-φ1000	SJ120/33	1000-1300	650
DLDKJ-1200	φ800-φ1200	SJ90/33 SJ120/33 SJ150/33	1000-1500	960
DLDKJ-1600	φ1000-φ1600	SJ120/33 SJ150/33	1000-1700	1300
DLDKJ-2500	φ1400-φ2500	SJ120/33 SJ150/33	1500-2000	1400
DLDKJ-3000	φ2000-3000	SJ120/33 SJ150/33	2000-2500	1550

PVC TWO & FOUR CAVITY PRODUCTION LINE

MODEL	PIPE DIAMETER (MM)	HOST MODEL	TOTAL POWER (KW)	MAX CAPACITY (KGH)
DLGC25-D	16-25	SJZ51/105	108	120
DLGC63-D	20-63	SJZ65/132	123	250
DLGC32-F	16-32	SJZ65/1320	122	250

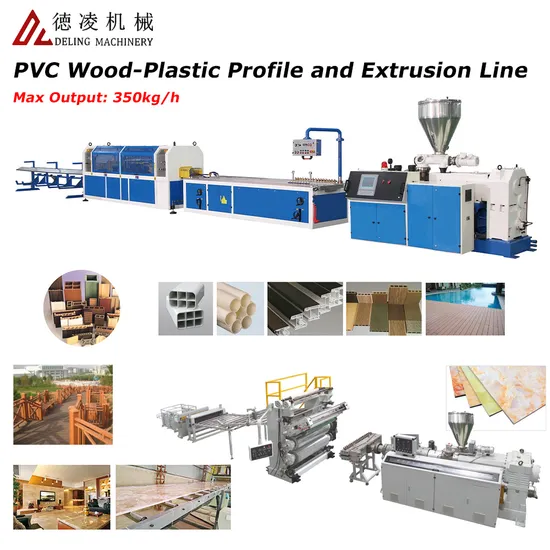

PVC WOOD-PLASTIC PROFILE AND EXTRUDSION LINE

MODEL	MAX PRODUCT WIDTH (MM)	HOST MODEL	MAX MOTOR POWER (KW)	MAX CAPACITY (KGH)
DLMS-108	108	SJZ51/105	18.5	100
DLMS-180	180	SJZ51/105 OR SJZ51/110	22	100
DLMS-240	240	SJZ65/132	37	150-200
DLMS-300	300	SJZ65/132	37	150-200
DLMS-400	400	SJZ80/156	55	250-300
DLMS-500	500	SJZ80/156	55	250-300
DLMS-600	600	SJZ80/156	75	300-350

PVC DECORATIVE MARBLE SHEET PRODUCTION LINE

MODEL	PLATE WIDTH (MM)	PLATE THICKNESS (MM)	MAX CAPACITY (KGH)	PRODUCTION SPEED (M/MIN)
SJSZ-80/156	1220	2-6	200-600	0.9

PVC WPC DOOR BOARD PRODUCTION LINE

MODEL	MAX PLATE WIDTH (MM)	HOST MODEL	MAX CAPACITY (KGH)
DLMSM-600	600	SJSZ80/156	400
DLMSM-900	900	SJSZ92/188	600
DLMSM-1200	1200	SJSZ92/188	600

PVC+ASA/PMMA GLAZE ROOF TILE PRODUCTION LINE
PLASTIC FOAM PICTURE FRAME PROFILE PRODUCTION LINE

MODEL	RODUCTION SPEED (M/MIN)	INSTALLED POWER (KW)	APPEARANCE SIZE (M)
DLJK-65	2-6	50	26*1*2
DLJK-90	1-5	90	32*1*2
DLJK-100	1-4	100	33*1*2
DLJK-120	1-3	130	34*1*2

FULL AUTOMATIC MIXING LINE
SJ SERIES SINGLE SCREW PLASTIC EXTRUDER

MODEL	L/D	CAPACITY (PE) (KGH)	SCREW SPEED (R/MIN)	DRIVE POWER (KW)	CENTER HEIGHT (MM)
SJ-25	25/1	5	20-120	1.5-2.2	1000
SJ-30	25/1	10	20-150	3-5.5	1000
SJ-45	25-33/1	50-150	20-150	7.5-37	1000
SJ-65	25-33/1	60-250	20-150	22-90	1000
SJ-75	25-33/1	200-350	20-150	55-110	1100
SJ-90	25-33/1	180-550	20-150	37-185	1100
SJ-120	25-33/1	320-800	20-150	75-280	1250
SJ-150	25-33/1	400-1200	20-150	90-355	1300

SJSZ SERIES CONICAL TWIN-SCREW PLASTICS EXTRUDER

MODEL	SJSZ-45	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
SCREW DIAMETER (MM)	45/90	51/105	55/110	65/132	80/156	92/188
SCREW NUMBER (PCS)	2
SCREWS DIRECTION	SCREW ROTATION DIRECTION
SCREW ROTATION SPEED (RPM)	1-45	1-45	40	1-35	1-37	1-33
SCREW EFFECTIVE LENGTH (MM)	985	1070	1200	1440	1800	2500
MAIN POWER (KW)	15	18.5	22/30	37	55	90
BARREL HEATING POWER (KW)	12	18	18	24	36	86.8
PRODUCTION CAPACITY (KGH)	120	80-150	150-180	250-300	320-400	600-800
CENTER HEIGHT (MM)	1000	1000	1000	1000	1000	1200
WEIGHT (KG)	2800	3200	3500	4000	5000	8000
DIMENSIONS (CM) (L*W*H)	330*120*210	360*110*210	360*110*210	423.5*152*245	475*155*246	672.5*155*284.1

SHJ SERIRS PARALLEL TWIN SCREW EXTRUDER

MODEL	DARREL DIAMETER (MM)	L/D	MOTOR POWER (KW)	SCREW SPEED (RPM)	PRODUCTION CAPACITY (KGH)
SJSL-20(A,B)	22	32-44	4-5.5	400-600	2-10
SJSL-36(A,B,C,D)	36	32-48	11-22	400-600	10-150
SJSL-51(A,B,C,D)	54	32-52	45-90	500-600	100-300
SJSL-63(A,B,C,D)	63	32-64	75-160	500-600	150-700
SJSL-75(A,B,C,D)	72	32-64	110-315	500-600	300-1200
SJSL-95(A,B,C,D)	94	32-64	250-550	500-600	700-2000

BRP SERIES PARALLEL TWIN SCREW EXTRUDER

MODEL	SCREW DIAMETER (MM)	MOTOR POWER (KW)	MAX ROTATING SPEED (RPM)	L/D	PRODUCTION CAPACITY (KGH)
BRP-75	75	37	45	26:1	350
BRP-90	90	55	45	26:1	450
BRP-93	93	67	42	28:1	600
BRP-107	107	75	38	26:1	800
BRP-110	110	90	38	28:1	850
BRP-120	120	110	32	26:1	1100
BRP-130	130	132	30	26:1	1200

Q: What is the price of plastic recycling line?
A: This depends on the customer's level of cleanliness of the final material and the required production capacity. We can cals recommend themost effective recycling line combination for the customer based of their budget range
Q: Is it necessary to remove the labelmachine?
A: If there are no labels or caps on the bottles that need to be recycled, or if the customer does not need to remove them, there is no need to remove them, there is no need to remove the label machine
Q: How many labels can be removed by the label removal machine?
A: Processing compressed bottles can remove over 96% of labels and caps, while processing uncompressed bottles can remove over 98%
Q: How often does the blade of the crusher need to be sharpened?
A: Grind at least once a week
Q: How to discharge the dirt and sewage of high-speed fiction cleaning machine?
A: Discharge through the discharge outlet below the machine
Q: What is the most suitable temperature for hot cleaning a steamer?
A: Around 80°C
Q: How to remove residual labels and bottle caps from bottles after the label removal machine?
A: Residual labels and bottle caps can be removed through rinsing tanks and vertical label and cap removal machines
Q: What are the functions of a rinse tank?
A: It can clean the crushed materials, and the residlual label paper and bottle caps willfloat on the water surface when they pass through the rinsing tank, and will not be transported to the next machine
Q: What is the moisture content of the material after passing through the dehydrator?
A: ≤3%
Q: Can a plastic granulator be connected behind the plastic recycling line
A: Yes
Partner with Us for a Sustainable Future in Plastic Recycling

---
