Customized Soda Cracker Biscuit Production Line with Biscuit Processing Machine Cookie Making Machine

Product Description

SINOBAKE's soda and cracker biscuit production line is a complex process that involves the preparation of raw materials, mixing, forming, baking, cooling, inspection, packaging, quality control, and distribution. The soda/cracker biscuit production line with the working width range 800mm to 1800mm. And the production output can reach 150-5000kgs/h. According to the length of oven and the biscuit type. Detailed Photos

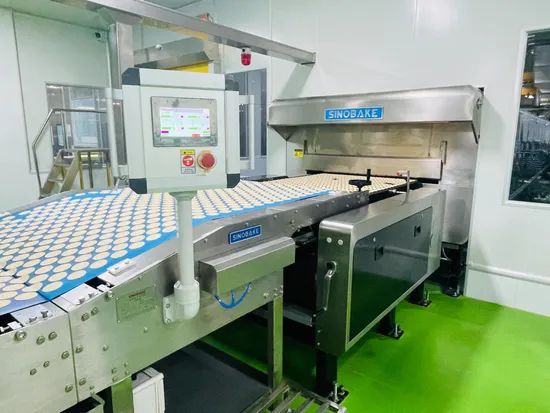

Automatic Soda/Cracker Biscuit Complete Production Line
1. Vertical dough mixer/ Horizontal dough mixer
Used to mixing the dough
2. Tilting machine
Used to easy to transport the dough to the dough feeding system
3. Metal detector
Used to detect if the dough contains any metal.
4. Automatic Dough feeding system
Used to automatic conveying the dough to the next machine.
5. Laminator
For Hard biscuit production, sheeting and overlapping the dough, increase layered of biscuit.
6. Gauge roll *4 (According to the length of oven )
Used for half-sheeting and sheeting dough for hard biscuit production line.
7. Rotary cutter
This machine is the forming equipment of hard biscuit , the dough will be cutting to hello panda biscuit shape or others shapes by rotary cutter.
8. Separating machine
Designed for separating the unbaked biscuit and the scrap.
9. Dough scrap recycle machine
Designed for scrap recycling when producing hard biscuit, also used for feeding of soft biscuit dough.
10. Enter oven machine
Designed for sending the unbaked biscuit into the baking oven
11. Oven drive belt and tension system
Mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned manually, pneumatic offset adjustment,the belt has brush cleaning device.
12. Tunnel Oven(Gas/Electric/Diesel oil for optional)
Used to baking biscuit.
13. Out oven machine
It is used for conveying baked biscuit out of oven smoothly.
14. 90/180 degree turning machine(Optional)
It makes a 90°/180°turn after biscuit come out of the oven, so that the plant can be used properly.
15. Oil sprayer
It sprays atomized oil with high speed on the up and down surface of biscuits, it can improve the color, smell, and taste of biscuits, the excessive oil can be recycled through filter, and reuse through conveyor.
16. Cooling conveyor
It is used for cooling and conveying the biscuits in normal condition.
17. Star wheel stacker
It is used for sorting the biscuits before packaging, to make the packaging work easy.
18. Packing console
It is used for checking the quality of biscuits before packaging.
19. PLC System
Used for automatic control and remote monitoring of biscuit production line
Company Profile
SINOBAKE Group Limited is dedicated to bakery solutions since 1994 in China. The company designs, develops, and manufactures a wide range of high-quality baking equipment, including biscuit and cookie production lines, chips line,cake line,automatic raw material feeding and dosing system,ovens and mixing machines. Mold size width: 400/600/800/1000/1200/1500/1800mm. According to different types of biscuits, the output of production is not the same. Capacity can achieve 100~5000kgs/h,
We has a strong reputation for producing reliable and efficient machinery that is easy to use and maintain. The company has a team of experienced engineers and technicians who are dedicated to researching and developing innovative new equipment and technologies to meet the evolving needs of the baking industry.
We has a global customer base, and its equipment is used by many well-known food brands and manufacturers around the world. The company has a strong commitment to customer satisfaction, providing comprehensive support services, including installation, training, and after-sales support.
Overall, SINOBAKE Group Limited is a trusted and respected player in the biscuit and cookie making machinery industry, and its equipment is renowned for its quality, reliability, and performance.
