Biodegradable PLA Plastics Granules Making Machine/Corn Starch Biodegradable Plastic Granulator Making Machine Bio Plastic Production Line

Product Description

Based on the formula, the biodegradable compound-making/granulating/pelletizing machine is mainly used to granulate biodegradable resin. Such biodegradable resin can be used to make biodegradable products, like dishes, chopsticks,straw, food containers, shopping bags, etc.
Product Description

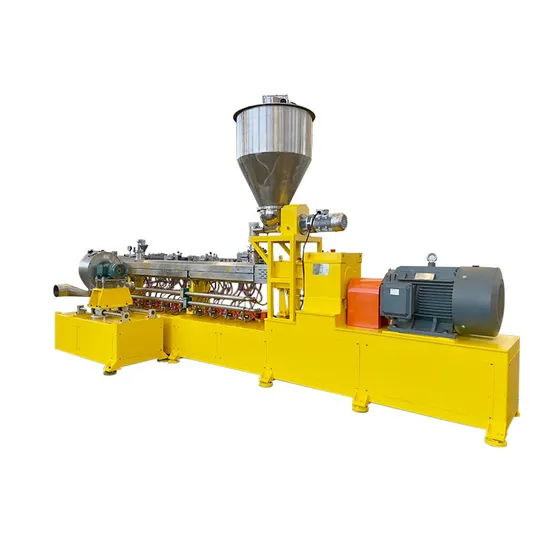

XINDA Co-rotating Twin Screw Extruder
Modular construction
XINDA's twin screw extruder/Plastic Extruder is built on a modular system. Screw elements with different lengths and functions are mounted to the main splined shaft. The screw combination is changeable. Thus, with a few screw elements and barrel variations, different processing tasks can be finished on the same machine.
Temperature Separately controlled
Each barrel section's temperature can be set separately. Normally, electrical heaters provide heating, and cooling is obtained with water. Barrels, as well as screw and kneading elements, are made out of nitride steel in the standard version; the wear-resistant version is made of suitable materials, corresponding to the respective requirements.
Standard barrels
The freely selectable order of screw elements assures the process sections mating the process configuration. Thus, different process zones can be set up interchangeably, according to the requirements for Conveying; Kneading; Mixing and shearing; Homogenizing; Degassing; and Pressure building.
Clamshell Barrel
The barrel can be opened in minutes. This makes product changeover, maintenance, and research fast and easy.

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw Diameter:MM	21.7	35.6	50.5	62.4	71	126
Central Distance	18	30	42	52	60	102
Length Diameter Ratio	28-52	28-52	28-52	28-52	28-52	28-52
Main Motor Power	4-5.5	22-45	75-110	110-185	160-280	90-160
Max.Screw Speed:RPM	600	600	600	600	600	600
Output Torque per Shaft:N.m	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference Output: KG/HOUR	44336	20-80	80-200	150-350	300-600	800-1500
