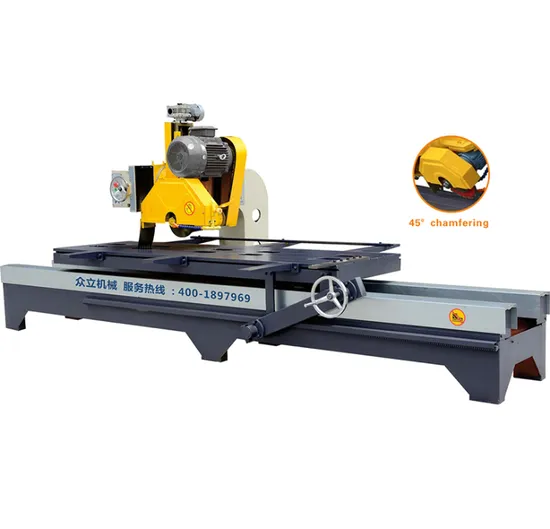

Zl Manual Stone Cutting Machine for Granite Glass Marble Quartz Slab Edge Cutting Machine 45 Degree

Product Description

Product Parameters

Model	ZLQ16-2700	ZLQ16-3200	ZLQ23-3000	Unit
Worktable size	2500*800	3000*800	2700*800	mm
Head flip	electric	electric	electric
Maximum Processing	2750*1200	3200*1200	3000*1200	mm
Blade diameter	350-600	350-600	350-425	mm
Main motor power	11	11	15	kw
Total power	14	14	19	kw
Dimensions	4200*2100*1900	4800*2100*1900	4450*2100*1900	mm
Water consumption	2	2	2	m³/h
Total weight	1.35	1.6	1.4	t
Price	3000	3200	3000	USD
Option:Electric table	+500			USD

Product Description
For chamfering marble, granite, and quartz stone, we supply Manual Stone Cutting Machines of the models ZLQ16-2700, 3200, and ZLQ23-3000. A simple machine, the Manual Stone Cutting Machine cuts slabs and chamfer edges. The table is moved by hand, and the chamfering head is turned by a motor. Casting worktables will be used for long-lasting Everyone can use the machine simply.
option: electric table
We also provide OEM/ODM production machine service.
