There are two types of impact crusher: two-chamber PF and there-chamber PFV crusher. Dealing with the material with the side length below 500mm not more than 250MPa anti-pressure strength, Impact crusher can be widely used in crushing the coarse, medium and fine material (E.g. granite, limestone concrete). During the process of operating, the rotor at highspeed will be brought along by the electric motor. The material will be impacted by the Flat Hammer to be crushed, and then be countered to the liner for the second crushing, then be discharged through the discharge opening.
WORKING PRINCIPLE
This machine used impact energy to crush the raw material. When the material comes to zone of action of hammer plate, material will be pushed to impact device to be crushed under the force of impact, then the material will bounce back to zone of action to be re-crushed, this process would not discharged from bottom of machine. Adjusting the gap between impact rack and rotor rack could change the output size and shape of material.
Features of Impact Crusher
Ⅰ. High reduction ratio and crushing efficiency;
Ⅱ. No-board connection; the blow bar with high chrome (high chromed blow bar).
Ⅲ. Easy maintenance and reliable operation.
Ⅳ. Crushed product with cubical shape.
Ⅴ. Impact plate with a special shape.
Advantages of Impact Crusher
Ⅰ. Unique structure, keyless connection.
Ⅱ. High chrome hammer and special impact liner plate.
Ⅲ. High efficient in hard rocking. crushing with big feed opening.
Ⅳ. Easy-adjusted clearance between impact plate and blew bar, fine cubic shape.
Ⅴ. Two-cavity or three-cavity chamber with different advantages.
PRODUCT PARAMETERS
Model
| Specification
| Feeding Port Size (mm)
| Max. Processing Size (mm)
| Capacity (t/h)
| Modelof Motor
| Power(KW)
|
|
|
PF-1007
| φ1000×700
| 400×730
| ≤250
| 15-60
| Y250M-6
| 37
|
PF-1010
| φ1000×1050
| 400×1080
| ≤300
| 50-90
| Y315S-6
| 75
|
PF-1210
| φ1250×1050
| 400×1080
| ≤300
| 70-130
| Y315L1-6
| 110
|
PF-1212
| φ1250×1200
| 400×1250
| ≤300
| 70-140
| Y315L2-6
| 132
|
PF-1214
| φ1250×1400
| 400×1430
| ≤300
| 90-180
| Y315L2-6
| 132
|
PF-1315
| φ1300×1500
| 680×1520
| ≤350
| 120-250
| Y2-355M2-6
| 200
|
PF-1320
| φ1300×2000
| 680×1570
| ≤500
| 160-350
| Y2-355M2-6
| 280
|
PFV-1010
| φ1000×1050
| 400×1030
| ≤200
| 35-60
| Y315S-6
| 75
|
PFV-1210
| φ1250×1050
| 570×1030
| ≤250
| 70-140
| Y315L1-6
| 110
|
PFV-1214
| φ1250×1400
| 570×1430
| ≤250
| 90-190
| Y315L2-6
| 160
|
PFV-1315
| φ1300×1500
| 625×1530
| ≤300
| 150-280
| Y2-355M2-6
| 200
|
PFV-1380
| φ1300×1800
| 625×1830
| ≤300
| 220-350
| Y2-355M2-6
| 250
|
PFV-1415
| φ1400×1500
| 800×1530
| ≤300
| 280-350
| Y2-355M2-6
| 250
|
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

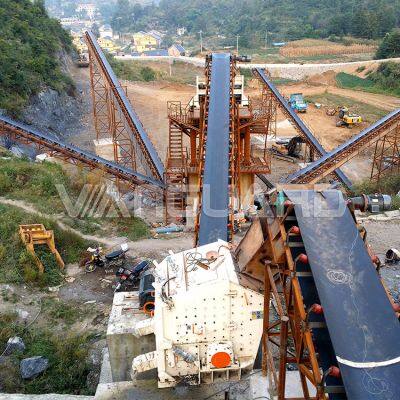

CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
