500L Cm500-4c Concrete Mixer with Four Wheels

Product Description

1.Why choose us?
TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company. 2.Products Specification:

Main Technical Parameter for CM500-4C portable concrete mixer wih Honda Gasoline Engine
Model	CM350-2A/2C	CM350-4A/4C	CM400-2C		CM400-4C	CM500-2C	CM500-4C	CM500-4D
Drum Capacity	350 L	350 L	400 L		400 L	500 L	500 L	500 L
Mixing Capacity	280 L	280 L	320 L		320 L	400 L	400 L	400 L
Productivity	4~ 5 m3/h	4~ 5 m3/h	5~ 6 m3/h		5~ 6 m3/h	6~ 8 m3/h	6~ 8 m3/h	6~ 8 m3/h
Bags of Cement per Batch	1 Bag Cement(50KG/bag)					1.5 Bag Cement
Drum Rotation Speed	25-30 rpm	25-30 rpm	25-30 rpm		25-30 rpm	25-30 rpm	25-30 rpm	25-30 rpm
Upper Drum Thickness	3 mm	3 mm	3 mm		3 mm	3 mm	3 mm	3 mm
Bottom Drum Thickness	3 mm	3 mm	3 mm		3 mm	4 mm	4 mm	4 mm
Mixing Drum Size	Φ800×900 mm		Φ850×900 mm			Φ950×900 mm
Tyre Size and Number	2×(4.00-12)	4×(4.00-12)	2×(4.00-12)		4×(4.00-12)	2×(4.00-12)	4×(4.00-12)	4×(4.00-12)
						5.00-12 as option

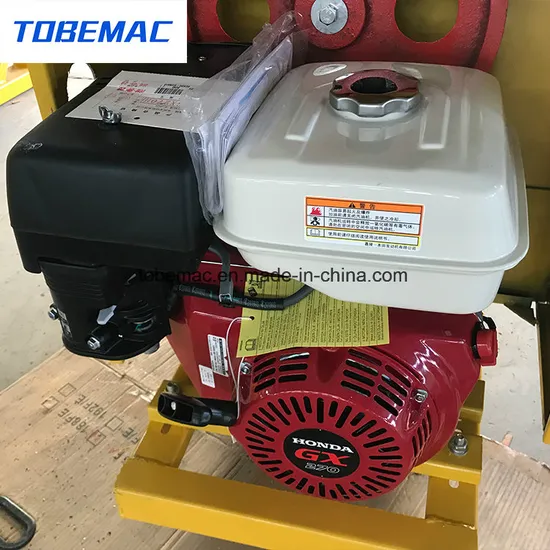

Power Option	Air-cooled Diesel Engine 178FS(6HP) Air-cooled Diesel Engine 186FS(10HP) Water-cooled Diesel Engine R175(6HP) Water-cooled Diesel Engine R180(8HP) Honda Gasoline EngineGX270( 9HP) Electric Motor 3KW
Total Weight	260 kg	280 kg		280 kg	300 kg	300 kg	320kg	360kg
Overall Size (L×W×H )	1960×1100×1700 mm			2100*1200*1800 mm		2100*1200*1800mm
20GP	20 SETS			16 SETS		12 SETS
40HQ	40 SETS			32 SETS		24 SETS

3.Product Application
TOBEMAC Tilting drum concrete mixer are very popular all over the world,both for industry purpose and DIY jobs.According to the requirements of different customers,we have developed several kinds of concrete mixers for you reference.TOBEMAC provides two flexible packages on either production or trading,which enables the clients to get the best machines on the lowest price.
Otherwise,the power unit is optional,which could be equipped with diesel engine,petrol engine or electric motor.
4.Main Features
1).Special casting or steel-sheet gear ring made in one piece
2). Foldable frame for easy stock and transportantion
3).Solid frame for high stability
4).Large 520mm diameter wheels for stability and maneverability
5).Large drum diameter for excellent mixing results
6).Swivels and tilts 360° for easy and complete discharge
7).Driving shaft mounted on sealed ball bearing.
5.Production Flow
6.Packaging&Delivery

	Size	1960 (L) * 960 (W) * 2280(D) mm
	Weight	600 kg
	Packaging Details	The normal package is iron case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
	Size	Completely Knocked Down
	Weight	Completely Knocked Down
	Packaging Details	The normal package is Air Bubble film and carton

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
