Product Details
Product Description
Product Description

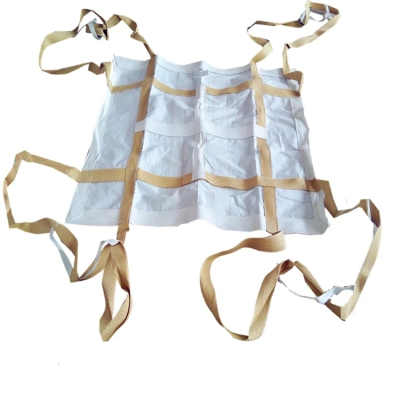

Detailed specification of 1 ton 1.5ton jumbo big bag for sugar packing :
No.
| Item
| Specification
|
1
| Size
| 85cm*85cm*90cm/90cm*90cm*100cm or customized
|
2
| Body construction
| 4-panel/U panel/Circular panel/Tubular panel/rectangular type
|
3
| Top
| Open mouth/skirt mouth/ filling spout
|
4
| Bottom
| Flat /discharge spout
|
5
| Loop type
| side seamed /cross corner/double stevedore with 2-4 belts
|
6
| Printing type
| one or two side with 1-3 color off set color
|
7
| Optional parts
| document pouch/label/rings/PE liner
|
8
| SWL
| 5:1/3:1/6:1
|
9
| Loading capacity
| 500kg to 3000kg
|
10
| Color
| white, yellow, blue or customized
|
11
| Fabric weight
| 100g/m2 to 240g/m2
|
12
| Fabric treatment
| anti-slip or laminated or plain
|
13
| Rope type
| 1 or 2 around the body or customized
|
14
| Application
| For packing the cement, sand, resin, wood waste, grain, powder,
chemical resin, construction material, mine, coal..
|
15
| Inside liner
| 60g/m2 to 80g/m2 PE liner
|
16
| Characteristics
| moisture-proof, conductive, reinforcement, dust-proof
|
17
| Material
| 100% original pp
|
18
| Sewing type
| Plain/chain/chain lock with optional soft-proof
|
19
| Package
| about 100kg for one bale
|
20
| Delivery Time
| within 25-30 days for one 40H container
|
The tops of big bags : open mouth or skirt(duffle)or filling spout
The bottom of the big bags: flat bottom or discharge spout
The loops of the big bags :cross corner or side seamed
The other options : with PE liner or labels or document pouch
4.Production process of 1 ton 1.5ton jumbo big bag for sugar packing:
The following is the whole process to making the super sack/big sack/jumbo bag/woven pp bulk bag:
Extruding PP particle---------Drawing and cutting PP film-------thread the PP tapes-------Weaving pp tapes to tubular fabric-------Printing the body---------sewing top/bottom parts and loops and other parts--------Inspecting the strength tensile-package
5. Application of 1 ton 1.5ton jumbo big bag for sugar packing :
packing / storing / transporting
1. Food Area: sugar, salt, flour, starch.
2. Agriculture Area: grains, rice, wheat, corn, seeds, flour, coffee Beans, soybeans.
3. Feed: pet food, pet litter, bird seed, grass seed, animal feed.
4. Chemicals: fertilizer, chemical materials, plastic resin.
5. Construction material:sand, cement , powder
6. Advantage of 1 ton 1.5ton jumbo big bag for sugar packing:
Compared with other packaged containers like wooden box, plastic drum, the super bag/ jumbo sack/FIBC sack have the following advantages:
1. Safety - Big Bag containers have a 6 to 1 lifting safety factor. With tubular design the risk of side seam failure has been reduced.
2. Cleaner environment - Fill and discharge spouts control dust during filling and emptying which avoids the risk of fire and then a cleaner and healthier work place is available.
3. Less risk of damage - An inserted polyethylene liner or lamination makes the Big Bag moisture resistant as well as stronger than other flexible containers.
4. Lower costs – Rapid filling and less shipping damage reduce operating costs, and a collapsed bag stores in only 5% of its filled volume.
5. Enhanced appearance – White clean Big Bag containers with high quality printing of your name or logo create a positive presentation.
7.Quality control of 1 ton 1.5ton jumbo big bag for sugar packing:
In order to produce the high quality FIBC sack/big sack/bulk bag, the following is our effort to control quality:
1. From material: using 100% original high strength pp material. not recycled or wasted pp material.
2. For fabric: control the strength tensile and density of pp tapes to satisfy the loading capacity.
3. For loops: using high quality material to fulfill the strength of loading goods.
4. Inspection: using the machines to test the strength tensile and tearing function after finish the goods.
5.Drop test: for safe factor, for each batch of products, will test the SWL to avoid any mistake.
8.Package and loading of 1 ton 1.5ton jumbo big bag for sugar packing:
using the automatic packing machine to pack the pp big bag. about:100kg/bale.
According to the FIBC bag with PE liner or not and complicated parts.
1. For 20ft container, will load about:8.5-10 tons. about 1000 pcs to 2000pcs.
2. For 40HQ container, will load about 18-22tons. about 9000 pcs to 12000pcs.
