US$50.00-1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Grinding Wheel Size
35*25*30cm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month

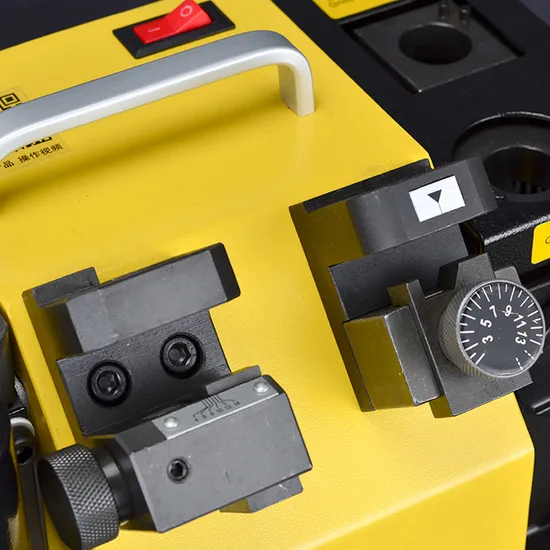

Product Description
Production Description
1. One machine has double function, with easy operation and saving cost.
2. With CBN or SDC(optional), long service life.
3. The milling cutter can grind 2-flute, 3-flute, 4-flute, 6-flute and so on.
4. This product has China national patent.
5. Drill bit can sharpen the drill bit front angle, back angle and front angle, you also can control the centre spot at random instend of centre
drill, easy vent scraps, relax drill.
6. Complex MR-13D and MR-X3.
SPECIFICATIONS:
| Model: | MR-F4 |
| | End mill | Drill bit |
| Diameter: | Φ4-Φ14mm | Φ3-Φ14)mm |
| Power: | 220V/160W |
| Speed: | 4400rpm |
| Point angle: | 0°-5° | 95°(90°)~135° |
| Dimension: | 35*25*30cm |
| Weight: | 21KG |
| Standard Equipment: | Grinding wheel :SDC (for carbide)×1 | Grinding wheel :CBN (for HSS)×1 |
| Twelve collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14 |
Two collet chucks: 2,4 flutes ×1 piece;
3,6 flutes×1 piece
| Collet chuck:(Φ2-Φ14)×1 |
| Optional Equipment: | Grinding wheel :CBN (for HSS) |
>>
