High Quality 50~60cbm/H Portable Concrete Mixing Plant with Wheel

Product Description

High Quality 50~60cbm/H Portable Concrete Mixing Plant with Wheel

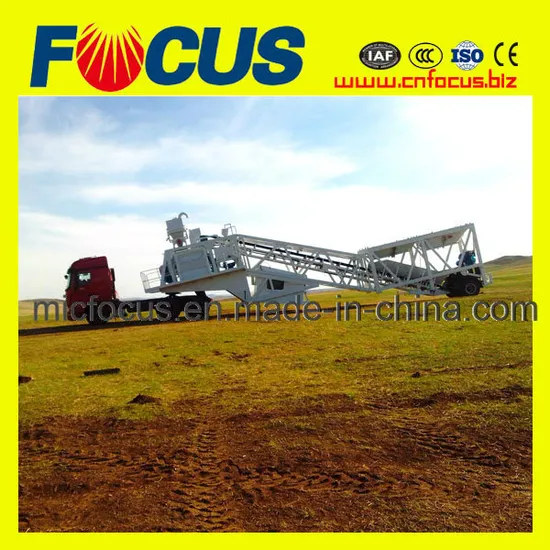

Mobile concrete batching plant is specially designed for project with short construction time, long construction line, frequently changing construction site; Our well-sold mobile concrete batching plant has the following features: Compact in structure, small in space needed, simple in installation, high in automation, it is widely used in the construction of bridge, building, water conservancy project, power and other infrastructure.
Sizes of Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
Installation Video of Mobile Concrete Batching Plant:
micfocus.en.made-in-china.com
Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
Why would our clients choose FOCUS mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.
The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
What are the main features of FOCUS mobile concrete batching plant?
1. Complete mobile unit:
Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this small mobile concrete batching plant.
2. Reliability of mix consistency:
Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft mixer offers this small mobile concrete batching plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.
3. Highly precise dosing of water, cement, fly-ash and additive
Focus small mobile concrete batching plant dosing is realized by three-point suspension sensors, and they are all metered separately.
4. Optimized and modular design
FOCUS mobile concrete batching plant is convenient either for container transport or for towing vehicles.
FOCUS Mobile Concrete Batching Plant Technical Parameters:

Model		YHZS25	YHZS35	YHZS50/60	YHZS75
Output capacity		25m³/h	35m³/h	50-60m³/h	75m³/h
Overall power		40kw	60kw	85kw	105kw
Discharge height		3800mm
Max. hauling speed		40km/h
warranty		13months after commissioning
After-sale service		Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer		JS500	JS750	JS1000	JS1500
Motor power		18.5kw	30kw	18.5kw×2	30kw×2
Max. aggregate dia.		80mm
Aggregate batcher		PLD800	PLD1200	PLD1600	PLD2400
Aggregate weighing precision		±2%
Aggregate feeder		Belt conveyor
Other scale scope	Cement	±1%
	water	±1%
	additive	±1%
Control system		Auto computer control, 1 set
Pneumatic system		1 set

Thanks for visiting, by the time you are paying attention to us, our mobile concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com

---
