Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Workbench Size (mm)
710*460
Dimension(L*W*H)
1400*1100*1600mm
Max. Cutting Thickness(mm)
400
Warranty of Core Components
1 Year
Optimal Processing Surface Roughness
2.5um
Wire Diameter (mm)
0.10~0.20
Product Name

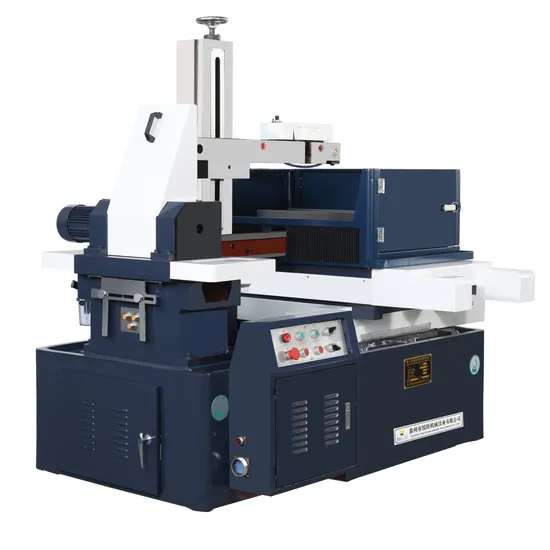

Dk7735 CNC Wire Cut EDM Machine
Worktable Travel (mm)
350*450
Transport Package
Wooden Case
Specification
1650mm*1290mm*1450mm
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
165.00cm * 129.00cm * 195.00cm
Package Gross Weight
1100.000kg
Product Description
Why Choose Us Popular EDM Machine in China and Oversea
Various countries languages operation interface
operation softwares could be Autocut, HL, X8 and other softwares to meet the processing all requirements of customers. several operation languages are optional.
There are many users all over the world
we has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries
Lifelong technical service
We promise 24 Hours service, Lifelong technical service.training how to install the machine and how to use the machine. Provide all spare parts for life-time.
10+ years experience
"Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented" is our enterprise
principle, which all staff should abide by.Quality and honesty are the keys of the enterprise future.
Specification
odel
| Worktable travel(mm)
| Worktable size(mm)
| Max. cutting thickness(mm)
| Max. load(kg)
| Dimensions(mm)
| Weight(kg)
|
DK7720
| 200*250
| 490*380
| 200
| 100
| 1200*900*1300
| 800
|
DK7725
| 250*320
| 520*390
| 300
| 200
| 1450*900*1500
| 1000
|
DK7735(32)
| 350(320)*450(400)
| 730*490
| 500
| 300
| 1400*1100*1600
| 1100
|
DK7745(40)
| 450(400)*550(500)
| 810*570
| 400
| 500
| 1600*1200*1600
| 1400
|
DK7745F(40F)
| 450(400)*630
| 950*600
| 400/600
| 600
| 1600*1580*1600
| 1600
|
DK7755(50)
| 550(500)*650(630)
| 950*650
| 700
| 700
| 2000*1500*1900
| 1800
|
DK7755F(50F)
| 550(500)*800
| 1140*650
| 700
| 700
| 2000*1650*1900
| 2000
|
DK7763
| 630*800
| 1140*750
| 700
| 1000
| 2100*1700*2050
| 2400
|
DK7763F
| 630*1000
| 1350*750
| 700
| 1200
| 2250*1850*2050
| 2800
|
DK7780
| 800*1000
| 1350*980
| 900
| 2000
| 2400*1900*2350
| 4000
|
DK7780F
| 800*1200
| 1600*1050
| 900
| 2400
| 2550*1950*2400
| 4500
|
DK77100
| 1000*1200
| 1600*1100
| 1000
| 2600
| 2850*2500*2500
| 5200
|
DK77100F
| 1000*1400
| 1800*1250
| 1000
| 2800
| 2950*2050*2500
| 5800
|
DK77120
| 1200*1400
| 1800*1350
| 1000
| 3000
| 3050*2750*2500
| 7500
|
DK77120F
| 1200*1600
| 2000*1500
| 1000
| 3500
| 3100*2850*2500
| 8400
|
DK77160
| 1600*1800
| 2000*1700
| 1000
| 4000
| 3250*3000*2500
| 10000
|
Work piece Show
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
>>
