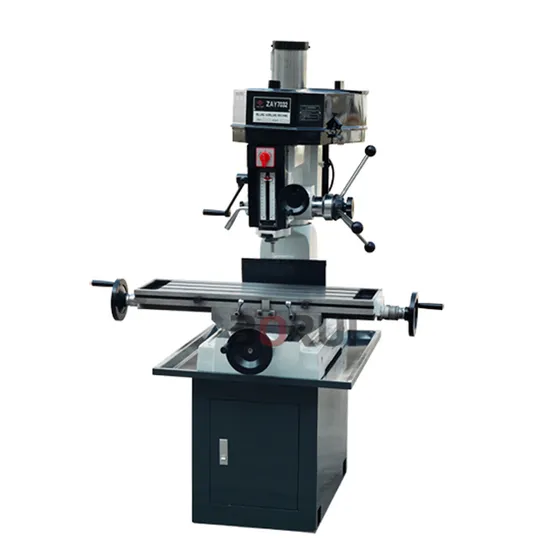

Mulit Function Machine Universal Vertical Drilling Milling Machine Zay7532/1

Product Description

manual mills table drilling machine vertical ZAY7532/1 Product Description

Features Vertical milling head can be moved forward or backward.
Vertical milling head can swivel ±90° vertically and ±360° Horizontaly. Adjustable stops on table. Manual quill feed.
High tensile casting iron elevative table.
Double motor with powerful force. Product Parameters
Precision Product main technical parameters:

SPECIFICATION
ITEM	ZAY7532/1	ZAY7540/1	ZAY7545/1	ZAY7550/1
Max.drilling capacity	32mm	40mm	45mm	50mm
Max.milling capacity(end/face)	25/100mm	32/100mm	32/100mm	32/100mm
Swivel angle of headstock(perpendicular)	±90°	±90°	±90°	±90°
spindle taper(end/face)	M.T.3 M.T.4	M.T.4	M.T.4	M.T.4
Distance from spindle nose to worktable surface	80-480mm	80-480mm	80-480mm	80-480mm
spindle travel	130mm	130mm	130mm	130mm
beam travel	500mm	500mm	500mm	500mm
step of spindle speed(end/face)	6\12	6\12	6\12	6\12
Range of spindle speed(end/face) 50HZ	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)	90-1600 /38-1280 (r/min)
60HZ (4 poles)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)	110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face)	3	3	3	3
Range of spindle auto-feeding(end/face)	0.12 0.18 0.25	0.12 0.18 0.25	0.12 0.18 0.25	0.12 0.18 0.25
Worktable size	800×240mm	800×240mm	800×240mm	1000×240mm
Forward and afterward travel of worktable	300mm	300mm	300mm	300mm
Left anf right travel of worktable	585mm	585mm	585mm	785mm
Vertical travel of worktable	400mm	400mm	400mm	400mm
Min.distance from spindle axis to column	290mm	290mm	290mm	290mm
Power(end/face)	0.75KW(1HP)/1.5KW	1.1KW(1.5HP)/1.5KW	1.5KW(2HP)/1.5KW	1.5KW(2HP)/1.5KW
Voltage/Frequency	As customer's requirement
Cooling pump power	0.04KW	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	930kg/1030kg	933kg/1033kg	935kg/1035kg	950kg/1050kg
Packing size	1020×1350×1850mm	1020×1350×1850mm	1020×1350×1850mm	1220×1350×1850mm
Loading amount	8pcs/20'container	8pcs/20'container	8pcs/20'container	4pcs/20'container

Packed in plyw/case
Delivery time: 35 days after down payment Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
