S212-10L Essential Equipment for Mixing Reaction Distillation and Filtration Jacketed Glass Reactor

Product Description

S212-10L Essential Equipment for Mixing Reaction Distillation and Filtration Jacketed Glass Reactor Product Description

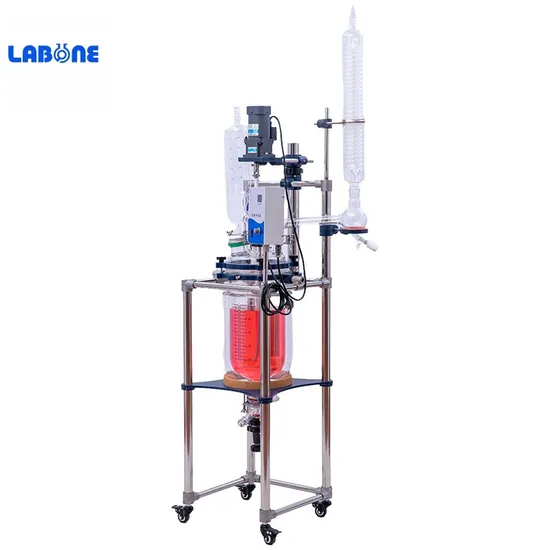

S212-10L Jacketed Glass Reactor
Brief Introduction:
The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. And other operations; external refrigeration cycle equipment can also be used to react to low temperature reaction in the kettle; if there is heating and cooling in the material reaction process, external high and low temperature circulation devices can be used. Moreover, the contact parts with materials are all made of high-temperature and corrosion-resistant high borosilicate glass and polytetrafluoroethylene material, which is especially suitable for the reaction of easily decomposing denatured biological products, and is not easy to react with various materials.
Working Principle
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L,200L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.
It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.
Detailed Photos
Product Parameters
Specifications

Model	S212-10L	S212-20L	S212-30L	S212-50L
Glass Material	GG-17	GG-17	GG-17	GG-17
Frame Material	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel
Fittings Material	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel
Moves	Brake Caster	Brake Caster	Brake Caster	Brake Caster
Reaction bottle capacity	10L	20L	25L	30L
Jacketed Capacity	6L	8L	8L	10L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	Six port	Six port	Six port	Six port
Discharger port distance to ground	450mm	450mm	450mm	450mm
Temp. range	-80-250ºC	-80-250ºC	-80-250ºC	-80-250ºC
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-450rpm	0-450rpm	0-450rpm	0-450rpm
Stirring diameter	12mm	12mm	12mm	12mm
Stirring power	90W1/3	120W1/3	120W1/3	120W1/3
Coltage(V/Hz)	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Dimension(mm)	520*520*2000	560*560*2100	560*560*2300	760*560*2300
Packing size(mm)	1370*590*800	1480*660*810	1670*670*860	1720*680*850
Packign weight(KG)	68kg	80kg	88kg	88kg

Certifications
Packaging & Shipping
Company Profile
Zhengzhou Labone Instrument Co., Ltd(Labone) is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business of reaction equipment, distillation equipment, drying equipment, purification equipment, chemical machinery, laboratory equipment, analytical instruments, etc.
Over the past 20 years, it has exported products to more than 100 countries in the world. It is one of the largest and most comprehensive instrument manufacturers in China. Our products are sold to Asia, Africa, Antarctica, South America, North America, Europe, and Oceania.
Customer feedback: Our Advantages
Professional FactoryLABONE 22 year's focus on chemical machinery industry, 9 years of export in chemical industry, professional, dedicated and persistent.Special CustomizedOne-to-one professional customization is available, and we will recommend it to you based on the size of the factory and the size of the output.Delivery speedSamples are produced in three days and shipped in seven days, shortening the delivery cycle.Quality ControlAll materials are made of high-quality materials that have passed national quality inspection and are safe and reliable.After sales serviceAll products of LABONE are guaranteed for one year, lifelong maintenance, 24 hours after sales technical support and service hotline.
FAQ
Q1: Why Choose LABONE?(1).Professional export company with more than 9 years experience(2).Exported to more than 90% Countries(3).Turnkey Solution is no problemQ2: Is OEM,ODM service available?Most of the products are available for OEM customization.Q3:What's kind of Payment terms for customer choosing?T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...Q4:Can online video inspection before shipment?Absolutely no problemQ5: what's the MOQ ? MOQ: MOQ can accept 1setQ6:What's kind of shipment for customer choosing?Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.We can also provide reasonable solutions according to your transportation requirementsQ7: After-sale service:1 year warranty for all kinds of products;If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

---
