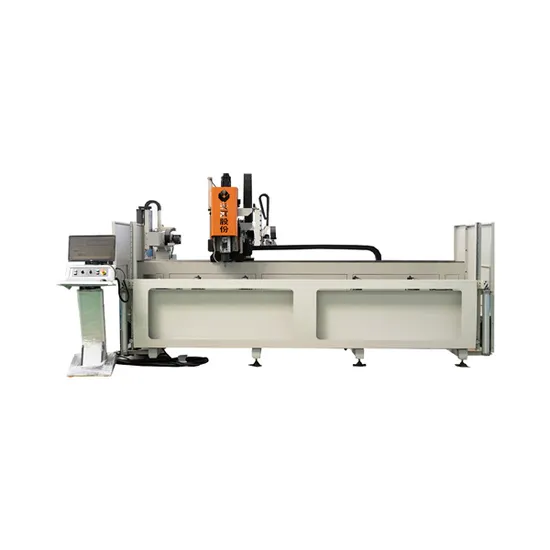

Aluminum Window 3 Axis Drilling Machine Center CNC Copy Milling Machine

Product Description

Aluminum Window 3 Axis Drilling Machine Center CNC Copy Milling Machine
Machine Features
1.Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall
or industrial aluminum profile, copper, PVC profile and etc.
2.Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the
stable working, with better positioning and processing accuracy.
3.Adopting high speed electrical auto switching tool spindle, with good and reliable performance.
4.There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two
areas for short profile, which greatly improve the working efficiency.
5.Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the
chippings pollution to the environment; help building a good working environment.
6.It is convenient to operate with intelligent CNC system and brief intuitive interface
7.The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at
three surfaces for one time clamping.
Technical Parameters

Item	Specification
X-axis range	3500mm
Y-axis range	450mm
Z-axis range	350mm
X-axis moving speed	0~60m/min
Y-axis moving speed	0~30m/min
Z-axis moving speed	0~30m/min
Spindle power	7.5kw/9kw
Spindle max rev	24000r/min
Spindle taper	ISO30
Max processing range	160*160*3200mm
Tool magazine capacity	3 pcs
Quantity of clamp	4
Area	4500*2300mm
Weight	2500kg

---
