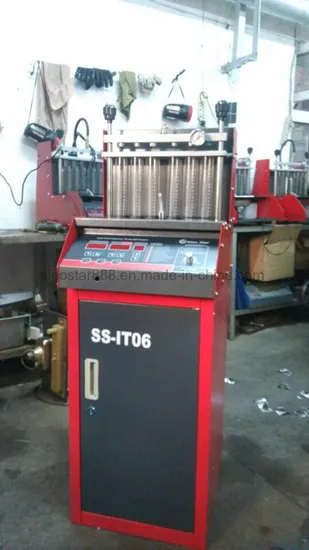

Auto Fuel Injector Tester and Cleaner/Electronic Fuel Injector Tester (SS-IT06)

Product Description

Auto Fuel Injector Tester and Cleaner/electronic fuel injector tester(SS-IT06)

Power supply	220V/50Hz/1Ph
Range of turning speed	0-7500r/min
Spraying frequency	0-9900steplength100
Pulse width	0-20ms(step length)0.1ms
Timing measurement	0-20min(adjustable)
The pressure of system	0-0.6Mpa(adjustable)
Oil tank capacity	2000ml
Ultrasonic cleanig power	70w(intermittent)
Frequency of ultrasonic cleaning	28kHz+0.5kHz
Measuring cylinder capacity	140ml
Measuring cylinder precision	2ml
Test method quantity	13
Display	Digitron
Oil pump(imported)	Siemens
Operate	Key press
dimensions(LxWXH):	380mmx485mmx470mm
Weight of table:	20kg
Dimensions of table	400mmX450mmX730mm
Weight of main frame	17kg

Sino Star Auto Auto fuel injector tester & cleaner (SS-IT06) Features:
1.It can check the defects of leaking,blocking,atomization,the angle state of the injector,also the amount and the unifo
rmity of spraying oil when the injectors are at different running speed.
2.After being equiped with ultrasonic cleaner the regorging and ultrasonic cleaning for single or several injectors
will be avail able.
3.It is available for static and continuous testing and cleaning for various injectors with types of high or low -ohmic
resistor,voltage and current.
4.It can simulate the accelerating or decelerating state of engine optionally.
5.Two checking methods(by timing or times) for you to choose.
6.It can determine the shortest switch Cyc, checkup and distinguish the injectors'quality.
7.Possessing the function of immune dismantling and oil route checking.
8.The back light makes the working state of injectors being shown clearly.
9.The checking connected bonders are available for various of injectors.
10.All the main components are imported from abroad with reliable quality.
11.Direct display of oil capacity level.
More detailed photos of Auto fuel injector tester & cleaner :
