Product Description
Product Description
The hot-dip galvanized steel grating is an original plate made of load flat steel and cross bars arranged at a certain distance in longitude and latitude, welded on a high-voltage resistance welding machine, and deeply processed through cutting, cutting, opening, edge wrapping and other processes to become a finished product required by customers.
The hot-dip galvanized steel grating is made of carbon steel, and the hot-dip galvanizing treatment on the surface can prevent oxidation. Usually, hot-dip galvanizing treatment is mostly used.
Specification of galvanized steel grating:
A. Flat steel: the material is Q235 or stainless steel, and there are ordinary plane type, anti-skid tooth type and section I type. The general specifications are 20 * 5, 25 * 5, 30 * 3, 32 * 5, 40 * 5, 40 * 3, 50 * 5, 65 * 5, 100 * 8, 100 * 10, etc.
B. Cross bar: the material is the same as flat steel, and twisted square steel is used. It is made of square and transverse drawing and twisting of a disc. Its common specifications are 5 * 5, 6 * 6, 8 * 8, etc.
C. The above flat steel and cross bar can be summarized as the common specifications of steel grating: 303 / 30 / 100, 325 / 30 / 100, etc.
Identification method of galvanized steel grating
(1) Center to center spacing of hot-dip galvanized steel grating flat steel: according to series: Series 1 is 30mm; Series 2 is 40mm; Series 3 is 60mm.
(2) Center to center spacing of cross bar of hot-dip galvanized steel grating: 100mm for Series 1 and 50mm for Series 2. Other specifications can be customized.
(3) Hot dip galvanized steel grating flat steel: the material is Q235B or stainless steel, which has ordinary plane type, anti-skid tooth type and section I type. Common specifications of galvanized steel grating platform include 20 * 5, 25 * 5, 25 * 3, 32 * 5, 30 * 5, 40 * 5, 40 * 3, 50 * 5, 65 * 5, 75 * 6, 100 * 8, 100 * 10, etc.
(4) Cross bar of hot-dip galvanized steel grating: round steel, twisted square steel, square steel or hexagonal angle steel made of Q235B or 304 stainless steel. Twisted square steel is drawn and twisted by a square die with a circular disk. Its common specifications are 5 * 5, 6 * 6, 8 * 8mm, etc.

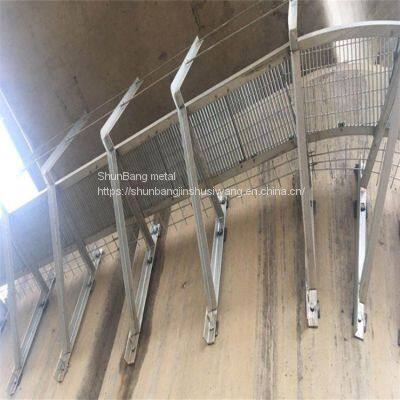

Application of hot-dip galvanized steel grating: hot-dip galvanized steel grating is used for platforms, walkways, ditch covers, well covers, ladders, fences, guardrails, etc. in petrochemical industry, power plants, water plants, sewage treatment plants, municipal engineering, environmental sanitation engineering and other fields.
>>
