Automatic Oat Grass Harvester and Baler/Rice Millet and Wheat Baler Reaper-Binders Machine

Product Description

Product Description

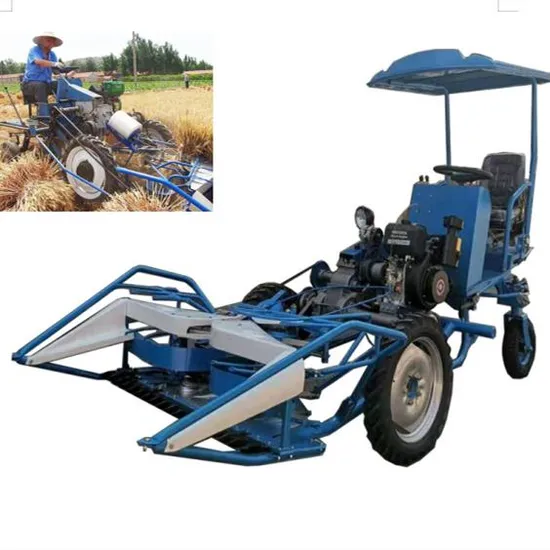

Automatic Reed Harvesting And Bundling Machine / Level Reed Combine Harvesting Machine
This product is an integrated machine for cutting, drying, and bundling, also known as a cutting and bundling machine. It is used for harvesting and bundling wheat and millet, corn stalks, grass, and reeds. It is easy to operate and labor-saving, and can be divided into three wheels of low stem crops and three wheels of high dry crops, four wheels of high stem crops. The standard configuration does not include a sunshade. The 192F air-cooled diesel engine has a cutting width of 1.4 meters, and is generally suitable for bundling with a width of 20cm. Product Parameters

Product Name	Three Wheel Reed Cutter
Model	GK-140
Power Type	Diesel Engine
Horsepower Size	8.5Kw/11.5Hp
Start Mode	Electric Start
Displacement	498CC
Type	Oil Type Gear Drive
Gear	3+1
Driving Speed-Km/h	First Gear-5.5 Second Gear-7.5 Third Gear-10 / Reverse Gear-6
Clutch	Manual, dry single disc
Brake System	The two wheels can be operated independently and can be turned left and right
Steering System	Differential Lock
Power Output	1800R/min
Tire Size	4.5-19
Bundling Height	35Cm
Crop Height	70-150Cm
Work Efficiency	2.5Mu/h
Height Of Cutter From The Ground	3-5Cm
Dimensions	3.6*1.85*1.2M
Weight	400Kg

Detailed Photos

Final product
