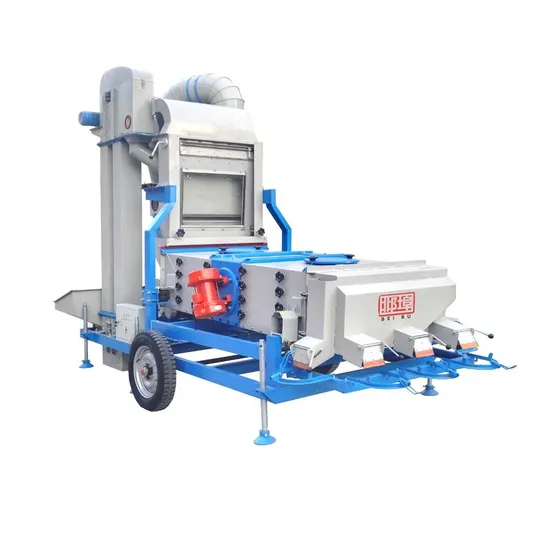

Air Screen Cleaner Sesame Cleaning Machine

Product Description

Agricultural Machine Seed Cleaning Machine Air Screen Cleaner as Seed Cleaning Equipment
Working Principle
•The raw seeds went to the main machine by elevator,first go through theair screen part which can remove the dust and light impurities; •Then the seeds will go to the vibration grader which will remove the larger and smaller impurities than sesame by the different hole size in the four layer sieves;
•Generally, the upper layer removes large impurities, the second layer distinguishes large and small particles, and the third and fourth layers separate impurities such as petals, broken grains, and sand.
Product advantages
Multifunctional: integrates air screening and grading screening;
High purity: Effectively removes more than 90% of grains, buds, insect-eaten grains, moldy grains, and more than 99% of large impurities, broken grains and other impurities;
Process: full laser CNC process, sandblasting and plastic spraying surface treatment;
Easy to operate: the screens can be replaced for easy daily cleaning and material switching;
One machine for multiple purposes: suitable for cleaning most grain seeds Machine Structure

Product Parameters

Model	5XFS-5	5XFS-7.5	5XFS-10
Sieve Size(mm)	1000x2400	1250x2400	1500x2400
Power(kw)	5.4	8.5	10.5
Capacity(t/h)	3t/h	5t/h	7t/h
Weight(kg)	1600	1800	2000
Overall Size L×W×H(mm)	5100*1900*3400	5100*2100*3400	5100*2300*3400
Voltage	380V, 50HZ, three phases

Cleaning Result
Machine Loading Picture
Installation Warehouse

---
