Product Description
Product Description

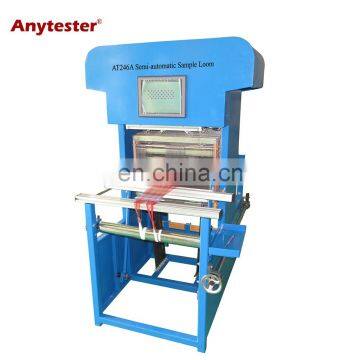

Product DescriptionAT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.SpecificationsShedding MethodDobbyReed width16inch or 20inchNo. of heald frame16 (20 optional)Let-offManualSheddingPneumatic & PLC controlColor selectionManualBeat-upManualTake-upManualAir pressure0.45~0.8MpaAir consumptionMax. 200L/minPowerA220V 50Hz, single-phaseDimensions 1300×980×1510mm (L×W×H)WeightApprox. 200kgDetails & Features> Large LCD display > Touch screen operation> PLC control> with 2G memory capacity to store designed patterns > Designable and editable patterns and USB interface to share designed patters; > Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;> Outer surface treated by baking varnish, good brightness and nice appearance;> Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;> With illuminating lamps; > Stable operation, low noise and high reliability;Packing & DeliveryPackagingSize140(L) * 100(W) * 180 (D)Weight200 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products Contacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertifications
>>
