Tony Reusable Safety New Designed CE Certified Pellet Machine

Product Description

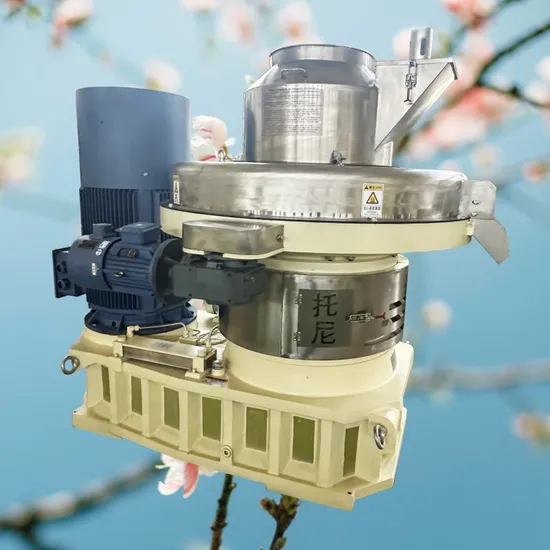

Tony Reusable Safety New Designed CE Certified Pellet Machine
It is a newly wood pellet production machine, researched, designed and produced by ourselves. It's mainly used to produce biomass pellets from the materials kinds of wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.
Features of wood pellet production machine:
Self -lubrication system
A.Spindle automatic lubricatin system
B.Roller automatic lubricatin system :it can keep the pellet machine in maintenance for 24hours.
Output of pellet mill machine: Our machine can reach the expected output in our technical parameter.
Working Life of spare parts: Working life of our dies is 3000-4000 hours, much longer than others'.
Number of Our Ring Die holes: Our ring die has 5 rows of holes, much more than others'.
Driving Method of pellet machine: Our machine is drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.
Forged Main Shaft: Our main shaft is forged, not casted. As well known, there is no air bubble in forging process, so it is hard to be broken.
Technical Pareameters:

Model	Power(KW)	Capacity(T/H)	Size(MM)	Weight(Ton)
TYJ551-II	90-110	1-2	2364*1550*1705	5.5
TYJ551-III	132	2-2.5	2364*1550*1705	5.5
TYJ760-III	160-180-200	2.5-3.5	2564*1750*2150	9
TYJ860-III	220-250	3-5	2664*1950*2150	13.5

High Technology Production Device:
High Quality Spare Parts:
Double-layers Ring Die
All kinds of pellet machine only have 1 die(ring die).Material: alloy, stainless steel Life time: 3000-4000hours1.The professional heat treatment processing technology can make its hardness above HRC62.2.Vertical Ring die, feeding vertically.3.Double-lay die, dual use. When one side is damaged, turn over and use the other side.4.The compression ratio can be custom made Rollers1.Number of rollers:2 pieces2.Die fixed, rollers running, materials centrifugal and evenly distributed around.3.Structure:roller shell and bearing4.Working life of rollers:1500-2000 hours Spindle1.Our main shaft is forged.2.no air insde the main shaft while being forged3.hard to be broken while high-speed running Motor1.Efficiency high overload capacity, low noise, small vibration
2.Reliable structure.
3.Rated Voltage 380V Rated Frequency 50HZ
4.400V 415V 420V 440V 690V 1140V and 60HZ ect.
5.Can also be made according to customers' requirements. Self-lubrication System1.Lubricating rollers to make the pellet press machine continuously run for 24 hours(using lubricating grease).
2.It also has the warning function when high pressure/temperature or low pressure/temperature appear.
Parameters of the pellets produced by TONY wood pellet production machine:calorific value: >3000~3500 kcal/kgdensity: >1.1~1.3t/m³moisture: <=10%combustion ratio: >=98%heat efficiency: >=81%ringelman emittance : <1discharged dust consistence: <=80mg/m³ash content: <=2%
Company Information:
Clean Workshop:
If you are interested in our wood pellet production machine,please send us inquiry freely. Before quotation we need to know:1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?

---
