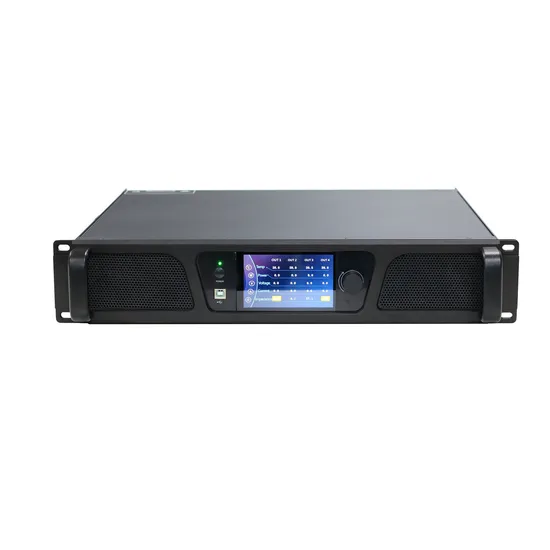

Public Address 4 Channel 1000W Power Amplifier with DSP Digital Processor and Touch Screen Display

Product Description

Public Address 4 Channel 1000W Power Amplifier with DSP Digital Processor and Touch Screen Display
Description:
PA41000 is a multifunctional network DSP digital power amplifier, which can remotely monitor the status of the power amplifier in real time, and it can set the compressor, limiter, noise gate, parametric equalization, matrix routing, delay as well as other DSP functions in real time. A simple software interface provides customers with simple and convenient settings and operating experience. Besides, the multiple connection methods can achieve good configurability and scalability, which is suitable for various environments.
Features:
1.Optional for Dante network audio 2.With network TCP/IP control, and it can realize the management of multiple devices 3.Power on or off remotely 4.Use 4.3 inch IPS capacitive touch screen 5.With built-in DSP digital processor 6.Support multiple connection method: USB, TCP/IP, RS232, RS485 7.Monitor the working status of the power amplifier remotely in real time 8.The power amplifier can be identified by software on site 9.Switch to bridging or matrix mode freely 10.Three levels of input sensitivity can be adjusted 0dBu/6dBu/12dBu, software or color LCD screen setting 11.With standard Fir function, support 4×2048 Taps 12.Support constant voltage and constant resistance: 100V, 70V, 8 ohms, 4 ohms
13.Software control, it can control media matrix and professional processor at the same time 14.Wide voltage operation 180-264VACApplication:
·Performing Arts Center
·Gym ·Conference ·Retail Store ·Opera ·Hotel ·Shopping Mall ·Restaurant

SPECIFICATIONS	PA-41000T
Channels	4
Rated power	4*1000W@8Ω,4*1600W@4Ω,4*600W@70V
Bridge power	2*2560W@8Ω, 2*1250W@100V
Minimum output impedance	4Ω for each channel
Input	Balanced input, 4*XLR
Output	4*Spoken; 4*Terminal
Maximum input level	20dBu/7.75V
Sensitive	12dBu/ 6dBu/ 0dBu
Signal to noise ratio	103dB@12dBu/ 1kHz
Frequency	20Hz ~20kHz (±0.5dB) @1W,8Ω
THD+N	<0.08%@1W
Sampling rate	48k/24bit
Display	4.3 inch IPS capacitive touch screen
Protection	Audio limiter, high temperature, DC, high frequency,
	short circuit, back-EMF, peak current limiter, inrush current
	limiter, start-up delay, power circuit breaker protection, power
	supply overvoltage/undervoltage protection
PC software	Software can control media matrix, audio processor, DSP power
	amplifier, active DSP module
Power supply	180-264VAC

FAQ
1. How long is the lead time?
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What's your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What's your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What's your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.

---
