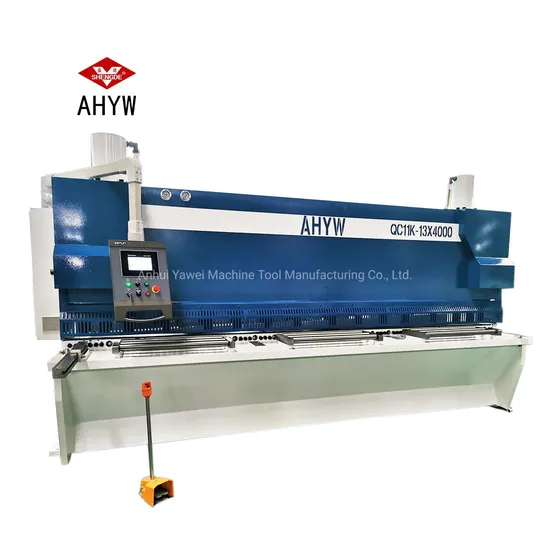

Ahyw Hydraulic Metal Shearing Machine Dac360t for Meta Plate Cutting

Product Description

AHYW YWGS SERIES CNC GUILLOTINE SHEARING MACHINE Product Description
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30mm.
This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.
Main features• The machine welding is made by welding plant and welding robots.
• After the welding,we make stress relief process by vibration system.
• After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
• All reference surfaces and connection holes are machined.Working environment
Power supply: three phase AC 380V 50Hz / customizedAmbient temperature: 0 ºC ~ 45 ºC Relative humidity: 20% ~ 80%
Detailed Photos
DELEM DAC-360T CNC Controller
• Panel based housing
• Bright LCD screen
• Back / front gauge control
• Retract function
• Cutting angle and gap control
• Stroke length limitation
• Manual movement of all axes
• Force control
• Sheet thickness measurement
• RTS, Return to Sender function
• Second servo axis (DAC-362T)
• Sheet supportRoller Feeding Workbench
Roller on the workbench can reduce friction and protect the workpiece surface; delicate design is convenient for cutting petty materials by hand.Presser
The pressing device adopts integral circuit and independent parallel pressing cylinder. When the sheet metal is uneven, it can be freely expanded and compressed on the sheet metal, and the pressing force can also be adjusted with the sheet material and thickness, without damage to the plate surface.Schneide ElectricsHigh quality electric parts are adopted to ensure machine stability, which can perform well even when the electricity is unstable. The users can easily get the replacement anywhere worldwide.
Rear Pneumatic Sheet Support
Rear pneumatic support system provides support and allows more precise cuts by keeping the material lifted throughout the cut, avoiding hanging down the wide and thin sheets.
Technical Parameters

TYPE	Throat Depth(mm)	Cutting Width(mm)	Width(mm)	Dimension(mm)	Cutting thickness(mm)	Stroke Number(t/m)	Weight(t)	Power(kw)
6*2500	100	2500	410	3120*1600*1900	6	≥15	5	7.5
6*3200	100	3200	410	3800*1600*1900	6	≥15	5.7	7.5
6*4000	100	4000	500	4600*1600*2040	6	≥13	7.5	7.5
8*2500	100	2500	410	3030*1620*1930	8	≥12	5	7.5
8*3200	100	3200	570	3800*1800*2100	8	≥12	7.5	11
8*4000	100	4000	570	4600*1800*2170	8	≥12	/	11
10*2500	100	2500	570	3100*1850*2100	10	≥10	6.5	11
10*3200	100	3200	570	3800*2000*2130	10	≥10	8.5	11
10*4000	100	4000	570	4600*2000*2130	10	≥10	11	11
12*2500	100	2500	540	3200*2000*2050	12	≥10	7	18.5
12*3200	100	3200	600	3900*2100*2500	12	≥10	11	18.5
16*2500	100	2500	550	3330*2000*2240	16	≥10	8.5	22
16*3200	100	3200	600	3850*2020*2460	16	≥6	11.4	22
16*4000	100	4000	600	4700*2000*2550	16	≥7	14.6	22
20*2500	120	2500	600	3100*2000*2510	20	≥6	12	30
20*3200	120	3200	800	3920*2300*2800	20	≥5	17.6	30
20*4000	120	4000	800	4900*2200*2800	20	≥4	21.5	30
25*2500	120	2500	780	3100*2330*2850	25	≥6	18.2	37
30*2500	120	2500	780	3200*2350*2800	30	≥6	20	45

Company Profile Facilities & EquipmentService Pre-Sales Service Technical and Sales team work After-Sales Service Engineers and Sales cooperate • Inquiry and consulting support. • Training how to install the machine, and how to use
• Suggest solution. the machine.
• View our Factory. • Engineers available to service machinery overseas.FAQQ1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time??
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
