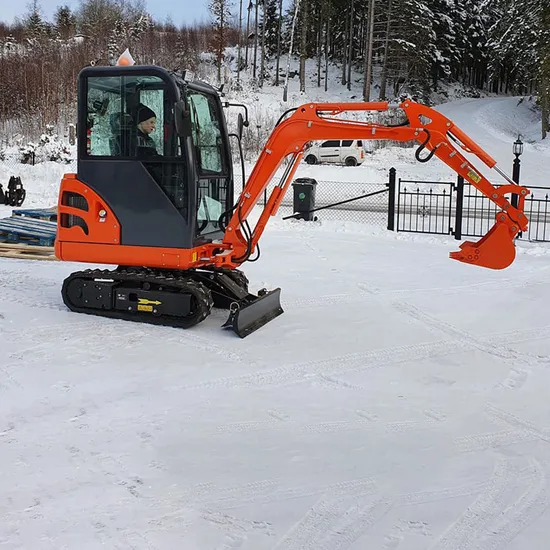

Mini Excavator with Tilting Bucket
1. About Everun
Qingdao Everun Machinery Co., Ltd is a company which have more than 10 years Wheel loaders exporting experience. We have very much learned about the strengths and weaknesses of wheel loaders. In 2012, we started to produce wheel loaders ourselves under the help of our European customer. Most of our wheel loaders are designed on the basis of European customer's suggestion. Now our products can be found working in more than 40 countries.
2. Product Details
| Model | ERE16 |
| Brand | EVERUN |
| Operating Weight | 1600kg |
| Digging bucket capacity | 0.045cbm/400kg |
| Digging bucket width | 400mm, can add narrow bucket is 200mm |
| Engine | Yanmar (3TNV70-S) |
| Rated power | 10kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | KDK |
| Pump flow | 23.3L/Min |
| Valve | BEIFANG |
| Displacement | 6.8ml/r |
| Swing motor | EATON |
| Traveling motor | DONGHYUAN |
| MAIN DEMENSIONS |
| Overall dimension( LxWxH) | 3160x1040x2377mm |
| Total length of track on land | 1670mm |
| Platform ground clearance | 460 mm |
| Platform back turning radius | 740 mm |
| Chassis width | 1130 mm |
| Track width | 180 mm |
| Chassis ground clearance | 460 mm |
| Bucket digging force | 10.5kn |
| Arm digging force | 6.5kn |
| Track height | 320 mm |
| OPERATING RANGE |
| Max. Digging depth | 2150 mm |
| Max. Vertical digging depth | 1740 mm |
| Max. Digging height | 3275 mm |
| Max. Dumping height | 2310 mm |
| Max. Digging radius on ground | 3470 mm |
| Min. Rotation radius | 1440 mm |
| Max. Upgrade height of bulldozer blade | 262 mm |
| Max. Digging depth of bulldozer blade | 192 mm |
