CNC Vertical Internal Grinding Machine Tool

Product Description

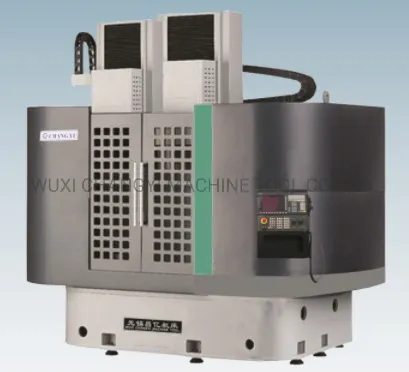

MKL (double column) 654 vertical CNC grinder
1, Main purpose of the machine tool
The machine can grind the inner circle, inner taper hole, step hole, inner end face, outer circle and outer end face of the work piece. The grinding cycle is automatically completed (including automatic feeding, automatic dressing of grinding wheel, automatic compensation, automatic rough grinding, fine grinding and automatic withdrawal).
2, Structure of the machine
1. The machine bed is made of wear-resistant cast iron, with good thermal stability and strong rigidity.
2. This machine is a three-axis two linkage CNC vertical (double column) compound grinder.
3. The machine tool adopts totally closed cover with mist absorption device. Rotary operation box.
4. The layout of the machine tool adopts the working mode of integral column type, horizontal integral feeding of sliding plate (x-axis), up and down reciprocating motion of double grinding frame (Z1, Z2 grinding wheel axes).
5. The rotating table is used for loading and unloading the work piece with the electric permanent magnet chuck, and other forms of clamps can be configured according to the differences of the user's work piece.
The machine tool can be equipped with on-line measuring instrument to realize full closed-loop dimension control.
Main technical specification

S.N.	Name	technical specification
	Machine tool weight	13800kg
	Machine overview dimension	3200x2800x3500mm
	Total power	62.5kw
	Motor power
	Motor power of work piece	4(KW)
	Motor power of reducer	1.5(KW)
	X axis servo motor power	6(KW)
	Z1 axis servo motor power	4(KW)
	Z2 axis servo motor power	4(KW)
	Z1axis grinding wheel motor power	25(KW)
	Z2 axis grinding wheel motor power	18(KW)
	X axis servo motor resolution	0.001(mm)
	Z1 axis servo motor resolution	0.001(mm)
	Z2 axis servo motor resolution	0.001(mm)
	X axis moving speed	10 m/min
	Z1, Z2, X axes moving speed	10 m/min
	Cooling pump flow	100(L/min)
	Cooling pump pressure	20(Bar)
	Processing scope
	Max. Processing OD	600(mm)
	Max. Processing ID	500(mm)
	Max. Processing depth	400(mm)
	Max. Swing diameter of work piece	700(mm)
	(X axis) Max. transverse feed stroke	1200(mm)
	(Z1,Z2 axis) Max. Moving stroke	500(mm)
	Max. Loading weight of work piece	800(kg)
	Rotation speed of work piece	20-200 stepless adjustment(r/min)
	Rotation speed of grinding wheel axis	10-6000 stepless adjustment(r/min)
	Machine tool accuracy
	X,Z1,Z2 axis positioning accuracy	0.008(mm)
	X,Z1,Z2 axis re-positioning accuracy	0.003(mm)
	Processing accuracy
	Inner ,cylindrical roundness	0.003(mm)
	Inner,cylindrical cylindricity	0.005(mm)
	Inner,cylindrical surface roughness	Ra0.4(um)
	end face flatness	0.005/400(mm)
	Inner hole and cylindrical concentricity	0.005mm
	Inner and cylindrical and end face flatness	0.005mm

---
