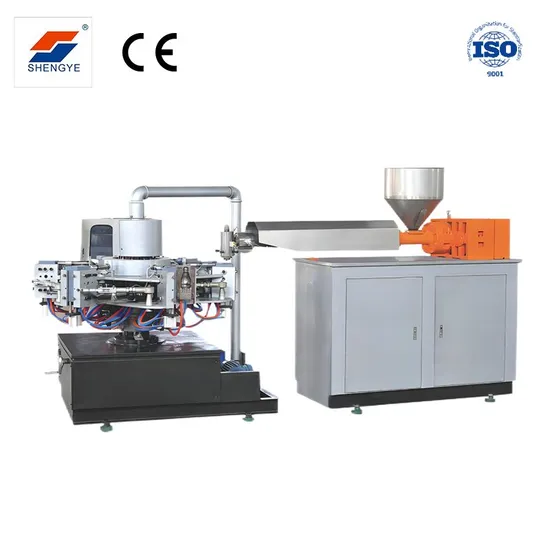

Rotary Blowing Molding Machine Syj-65-8 Made in China

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

CODE	SYJ1-65-8
Maximum product capacity	330ml
Output (PCS/hour)	2000(330ml)
Voltage and frequency converter	380V/50HZ
Screw diameter (mm)	65
Screw length-diameter ratio	1:25
Screw speed (r/min)	10~90
Screw material	38CrMOAlA
HDPE extrusion capacity (kg/h)	75
Modular number	1
Die head heating section	1
Die head heating rate (KW)	1.7
Screw heating section	3
Screw heating rate (KW)	10.5
Extrusion motor attack rate (KW)	15
Stroke rate of Rotary motor (KW)	1.5
Total installed attack rate (KW)	28.5
Extruder size (L X W X H)	2.5mX0.8mX2.03m
Rotating machine dimensions (L X W X H)	2.0mX1.8mX1.38m
Theoretical weight of extruder (KG)	700
Theoretical weight of rotary machine (KG)	1000
Average energy consumption (KW/h)	16
Average energy consumption (water m3/h)	2
Average energy consumption (gas m3/min)	2.5

---
