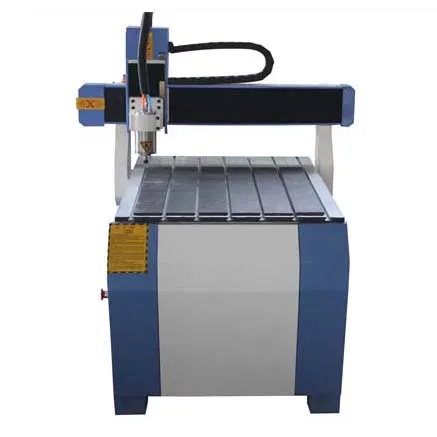

Mini CNC 3 Axis 6090 Atc CNC Router Desktop CNC Milling Machine

Product Description

Product Description
The mini CNC 3-axis 6090 ATC CNC router is a powerful and efficient desktop CNC milling machine. It offers a versatile and precise cutting experience that is perfect for both DIY enthusiasts and professional machinists alike.
With its compact and portable design, this CNC router is easy to use and can be easily placed on any flat surface. The machine is equipped with an automatic tool changer, which ensures that you can switch between different cutting tools quickly and easily.
The CNC router also comes with a range of advanced features, including a high-speed spindle, precise linear motion guides, and a user-friendly controller. These features work together to provide accurate and efficient cutting results, making this machine an excellent choice for any small or medium-sized machining project.
Overall, the mini CNC 3-axis 6090 ATC CNC router is an excellent investment for anyone looking for a reliable and high-quality desktop CNC milling machine. Whether you are a professional machinist or a DIY enthusiast, this machine is sure to provide you with the precision and accuracy you need to complete your projects with ease and efficiency. So, if you are looking for a quality CNC router, consider investing in this powerful and versatile machine today!


Detailed Photos
Casting iron table
Taiwan TBI ball screw transmission in X, Y, Z axis
T-slot table
Ncstudio control system
Best inverter
1.5KW water cooling spindle
Control box
Stepper motor
Feature
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision
2.Taiwan TBI ball screw with high working precision
3.Water cooling spindle, working with high speed
4.Whole machine is welded bed structure when working it's more stable
5.Can change the parts according to your requirment
Product Parameters

Model	Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area	600*900*100mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	T-slot seamless welded steel bed structure
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan TBI ball screw
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	Water cooling spindle
Spindle Speed	600-24000RPM
Working Mode	Stepper motor
Working Voltage	220V380V/3ph 50HZ/60Hz for standard machine
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3 software or Wentai software
Running circumstance	Temperature: 0°C~45°C
Relative humidity	30%~75%
Waranty	One year
Delivery time	2 weeks

After Sales Service
1.warranty is 1 year
2.24 hour technical support by email or calling
3.User-friendly english manual for machine using and maintaining
4.We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp
Company Profile
JINAN ZHONGKE CNC EQUIPMENT Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. ZHONGKE CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.

Packaging & Shipping

Certifications
