Automatic Edge Grinding Machine/CNC Grinding Machine/Milling Machine/Machine Tool

Product Description

List of optional devices or functions
	Model	Name	Function
Option 1		Grinding wheel shaft frequency conversion
Option 2	XZ-1	Fixture corrector	Trim the chuck

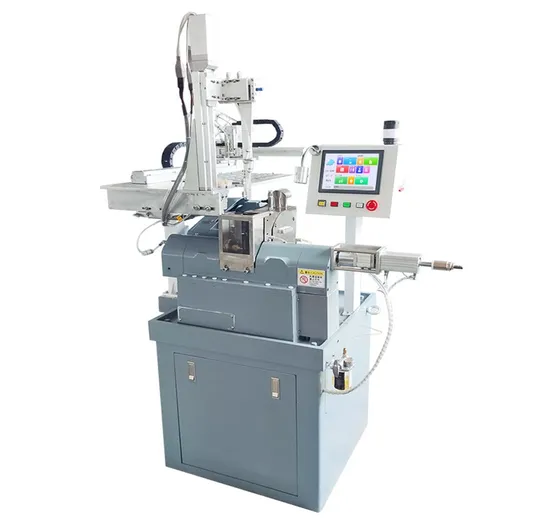

The Significant Features of ES80KAT-L Automatic Edge Grinding Machine
1. The feed of the grinding wheel and the movement of the work-piece axis adopt a servo+ sliding rail motion mode, and the accuracy of the equipment is well maintained;
2. Adopting touch screen control, all parameters can be digitized and set for control;
3. Multi stage precise control of the entire process of edge grinding and chamfering can greatly reduce the probability of glass surface burns and edge breakage, ensuring stable product quality;
4. Adopting a constant cutting depth grinding method with numerical settings, precise size control, and a delicate and smooth surface;
5. Servo digital control can greatly extend the service life of grinding wheels, especially suitable for edge grinding of large and wide sizes, sapphire and other super-hard materials;
6. The imported electric cylinder from Japan automatically takes and releases materials, with accurate positioning, high stability, and a high degree of automation, saving labor costs with one person and multiple machines.

Servo control, stable accuracy	Imported electric cylinder, lifetime maintenance free	Pneumatic gripping and precise positioning	Centrifuge body, automatic centering

Application field:
Lens products processed by ES185L optical edge grinding machine, which can be widely used in industries such as chemical, military, aerospace, transportation, petroleum, light industry, medical, etc.

ITEM	Standard specification
No. of spindle	1axis
Lens diameter	φ5~φ80mm
Working time	5sec~User setting
Holder spindle thread specification	M20*1(Fixed end right-handed, active end left-handed)
Holder spindle grinding speed	0-150rpm(Can be freely set)
Holder spindle centrifugal speed	200-1000rpm(Can be freely set)
Holder spindle rotary motor	8N.M
Holder spindle moving motor	400w servo drive
Holder speed moving precision	0.003mm
Dia wheel spindle speed	3500rpm
Dia wheel rotary motor	550w/380v/4P
Dia wheel moving motor	400w servo drive
Dia wheel moving precision	0.003mm
Dia wheel specification	φ160*30H7*30T(thick 8-30mm)
Dia wheel drive belt	O-type, M48
Cooling pump	90w/380v
Sand wheel shaft bearing	7203C DB P4
PLC	Delta
Touch screen	7-inch Delta
Electric cylinder	Japanese SMC brand
Pneumatic components	Yakde
Machine size	1200*1000*1800mm
Machine weight	About 500kg

Main Export Countries & Areas:
USA UK, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina, Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Z Printing offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Z printing Company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.

---
