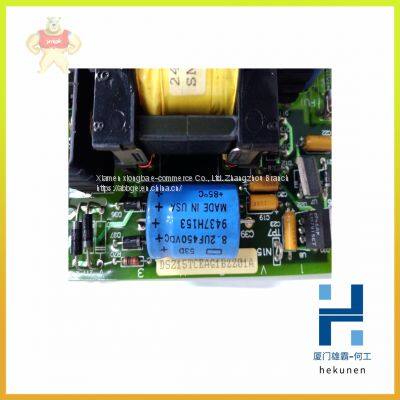

DS200SLCCG1AFG GE Control module power connector board

Product Details

Product Description

Product Description
DS200SLCCG1AFG GE Control module power connector board
DS200SLCCG1AFG GE Control module power connector board
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
The DS200SLCCG1AFG replacement LAN Communication board is only one version of many available within AX Control’s inventory. This board is designed for use with GE’s Mark V turbine control systems, designed to control and manage industrial gas and steam turbine systems. The MK V Control system can be set up as either a Simplex or TMR (triple modular redundant) system. It is important that customers know DS200SLCC boards typically do not include software located within the U6 and U7 EPROMs, as the board is shipped with these sockets empty. If you are not planning on removing EPROMs from your old board to move to your new board, please order a replacement board with the EPROMs in place (DS215 level.)
The DS200SLCCG1AFG board mounts to standoffs located on the SDCC board and interfaces with the keyboard located on this card via the KPPL connector.
The DS200SLCCG1AFG has a 16-position alphanumeric display located parallel to one edge. There are four posts located close to the end of this display (ST1 through ST4) that are used to protect its glass tip. These posts look like jumpers but should not be confused with the jumpers located elsewhere on the board. Jumper settings can be modified to change RS-422 DLAN drivers or to isolate the DLAN circuit. Additionally, the J19 jumper is used to connect the crystal to the processor. Additional jumper settings can be found in tables located within associated manuals and user guides.

---
