US$35,900.00
10-19 Pieces
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Maximum Working Height
16m
Maximum Platform Height
15m
Maximum Working Radius
7.9m
Maximum Span Height
7.45m
Maximum Load Capacity
200kg
Diesel Engine Model
Yunnei 490 Type
Diesel Engine Power
4 Cylinder 35kw
Drive Type
Hydraulic Motor Drive
Working Desk Size
1.53*0.78m
Maximum Overall Dimensions
7.02*1.78*2.19m
The Height of The Workbench From The Gro
220mm
Transport Package
Container
Specification
7.02*1.78*2.19m
Production Capacity
500sets/Minth
Product Description
Product Description
Wheel Articulated Boom Lift
- OEM & ODM Service -

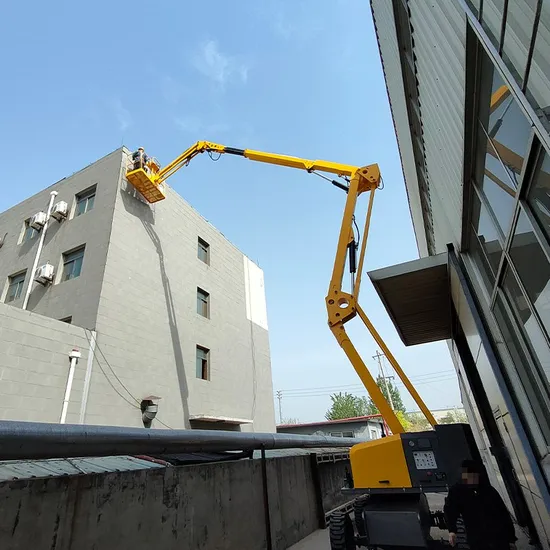

Wheel Articulated Boom Lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel,AC electricity,DC Battery or Hybrid Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
Detailed Photos
Product Parameters
Model
|
| ZTQE10
| ZTQE12
| ZTQE14
| ZTQE16
| ZTQE18
| ZTQE20
|
Measurements
|
|
Working height maximum
| m
| 12
| 14
| 16.05
| 17.8
| 20
| 21.9
|
Platform height maximum
| m
| 10
| 12
| 14.05
| 15.8
| 18
| 19.9
|
Horizontal reach maximum
| m
| 5.8
| 8
| 8.1
| 10
| 10.8
| 12.3
|
Up Stover clearance maximum
| m
| 4.78
| 5
| 7.6
| 7.6
| 9.2
| 9.2
|
(LxW ) Platform dimensions(LxW)
| m
| 1.1x0.65
| 1.53x0.76
|
Length(stowed)
| m
| 4.35
| 5.3
| 6.24
| 7.9
| 8.1
| 9.2
|
Width(stowed)
| m
| 1.5
| 2
| 1.75
| 2
| 2.38
| 2.38
|
Height(stowed)
| m
| 1.99
| 2.05
| 2
| 2
| 2.38
| 2.34
|
Wheelbase
| m
| 1.65
| 2
| 2
| 2.2
| 2.6
| 2.6
|
Ground clearance(center)
| m
| 0.15
| 0.2
| 0.2
| 0.2
| 0.3
| 0.3
|
Productivity
|
Lift capacity maximum
| kg
| 200
| 230
|
Platform occupancy maximum
|
| 2
|
Platform rotation
|
| ±80°
|
Vertical jib rotation
|
| 140°
|
Turntable rotation
|
| 355°
|
Turntable tailswing
| m
| 0.25
| 0.13
| 0
| 0
| 0.33
| 0.33
|
Drive speed (stowed)
| km/h
| 3
| 3
| 5
| 5
| 5
| 5
|
Drive speed (raised)
| km/h
| 0.8
| 0.8
| 0.8
| 0.8
| 0.8
| 0.8
|
Gradeability
|
| 25%
| 30%
| 25%
|
Working slope maximum
|
| 3°/3°
|
Turning radius(inside)
| m
| 2.16
| 2.2
| 2.68
| 2.98
| 2.66
| 2.66
|
Turning radius(outside)
| m
| 3.44
| 4.73
| 4.24
| 4.62
| 5.66
| 5.66
|
Drive & steer mode
|
| 4x2x2
|
Tire type
|
| 0.59x0.19
| 28x9-15
| 33x12-20
|
Power
|
Battery
|
| 48V/320Ah
| 48V/420Ah
|
Pump electric motor power
|
| 7.5
| 5
|
Drive electric motor power
| kW
| /
| 6.5x2
|
Control voltage
|
| 24V DC
|
Charger
|
| 48V/40A
|
Weight
| kg
| 4800
| 5500
| 6270
| 6720
| 8080
| 8200
|
Standards Compliance
|
| EN280:2013 + A1:2015 GB25849-2010
|
