CNC Wire Cut EDM Dk7750f Big Taper 60 Degree.

Product Description

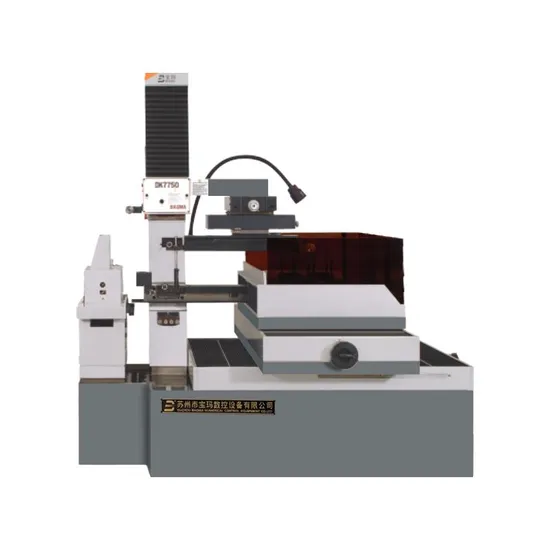

CNC Wire Cut EDM [DK7750F]
1. The casting for the main machine bed, using high rigid HT250, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.
2. Cantilever is symmetrical frame, which tension the electrode Molybdenum wire suitably to reduce the rate of wire-broken.
3. The controller equipped the BMXP Intelligent software, which integrates the program and control and based on Windows XP. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.
4. Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate
5. To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program
6. Embedded Control system can be connected with many design software smoothly.
7. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.
8. The control parameters of pulse power is directly by the software, in order to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece.
9. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.
10. with a large database storage capacity, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience
11. Three layer filters can prolong the using life of the working solution and improve the finishing, with BAOMA series working solution can achieve a better performance and PRO-environment.
12. Can be equipped with the close-loop control system, use the MITSUBISHI, YASKAWA servo control system and servo motors.
13. The wire moving is controlled by EMERSON transducer, which adopts unlimited adjustment.
14. The processing components involve godet mechanism, the best roughness Ra≤ 1.5μ M (the finishing can be improved greatly by using the BM working solution)
15. Customrized extra-big machine can be manufactured in our company.
Main performance indexes and technical requirements
1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time
(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.
2, CNC system configuration and technical performances
(1) CNC Hardware configuration:
(A) Industrial Computer: P4 or above
(B)EMS memory: 1G
(C)Fixed DisK: 160G
(D)USD and Internet
(E)15" liquid crystal display (LCD)
(F) RS232 and Keyboard and mouse
(1)CNC technical function:
4 axis processing
(2)Running environment
(A)Temperature: 5-40 degree
Relative humidity: 40%~80%

CNC Wire Cut EDM [DK7750F]		Unit	DK7750D	DK7750F
Worktable size (L× W)		mm	900× 600	900× 600
Table travel(X× Y)		mm	500× 630	500× 630
Max. workpiece thickness		mm	500	500
Max. taper angle /plate thickness		degree/mm	± 3° /100	± 30° /100
Max. machining speed		mm² /min	120-150	120-150
Precision		mm	≤ 0.012	≤ 0.0112
Max. working current		A	6	6
Roughness, three cutting		μ m	≤ 1.0	≤ 1.0
Wire diameter		mm	0.15~0.2	0.15~0.2
Wire travelling speed		m/min	5~11	5~11
Load of table		Kg	500	500
Working solution			working solution BM-2, BM-4 or Saponification Liquid
Working reservoir capacity		L	100	100
Power supply			3N-380V/50Hz	3N-380V/50Hz
Power consumption		KVA	2	2
Wire guide frame			Adjustable
Machine dimensions(L× W× H)		mm	2000× 1670× 1900	2000× 1670× 1800
Package dimensions (L× W× H)		mm	2130× 1970× 2050	2080× 1970× 2250
Machine weight		Kg	2300	2300
Controller type			BMW-3000	BMW-3000

2, Machine precision (according to the standard GB 7926-87)

Item\Model	DK7750
Movement vector of X, Y axes	0.005mm
Positioning precision of X axis	≤ 0.02mm
Repetitive positioning precision of X axis	0.002mm
Positioning precision of Y axis	≤ 0.03mm
Repetitive positioning precision of Y axis	0.002mm
Perpendicularity of the wire to the working table	≤ 0.01mm
Radial jumpiness of wire winding drum	≤ 0.03mm

---
