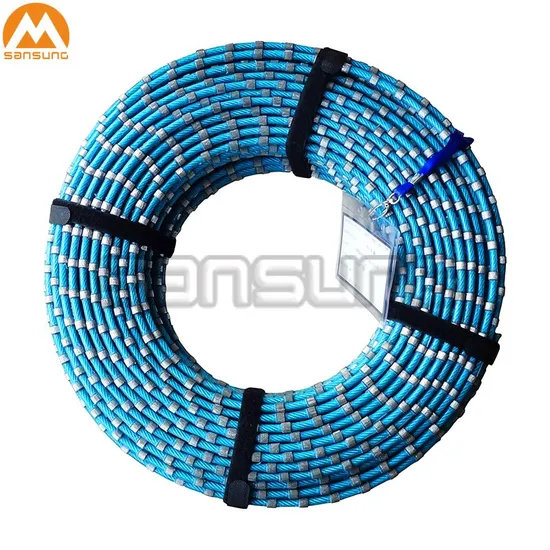

11.5mm Rubberized Sintered Beads Diamond Wire for Natural Granite and Marble Stone Quarry Cutting

Product Description

Xiamen Sansung Mining Equipment Co., Ltd provides one package service for Granite/Marble Quarrying and Mining related to diamond wire saw cutting stone block extraction. Including below needed equipments, tools and devices:
1) DTH Driller---pneumatic and electric models
2) DTH Hammer---CIR70 / CIR80 / CIR90 / CIR110 / BR1 / BR2 / BR3 / COP32 / COP34 models
3) DTH Bit---76MM / 89MM / 90MM / 95MM / 100MM / 105MM / 110MM...
4) DTH Drill Pipe---60MM / 76MM / 89MM...
5) Diamond Wire Saw Cutting Machine (refer to description on this page)
6) Diamond Wire (refer to description on this page)
7) Stone Pushing Hydro Bag
8) Stone Pushing Air Bag
9) Button Bit Grinding Machine and Grinding Cups
Please take a look at our MIC homepage and try find all needed tools and products.
More informations please ask us freely by sending enquiries via MIC or via email.
Thank you!
Diamond Wire for quarry
This technology is a revolution for stone quarry, which is highly efficiency in exploitation, safety andenvironmental friendly when operation. With this technology, the quarry will have a high yield of good block and the size of block will be large. With the promotion of this technology, the situation of high consumption ofresource, low output, small size of block, danger, and pollution can be hugely improved.

Wire for granite quarry
For granite quarry, the cables are ingeneral fitting by injection of vulcanized rubber, the advantage is better adheres to the beads and support cable, which protect it better from the actionof abrasive pastes. The rubber wire easily withstands increases in temperature caused by badly controlled water spraying is power 11-75KW. The water spraying between 25-50 L/min according to the cut dimension.

Wire for marble quarry
Diamond wire used for marble quarry which canvastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.

Wire saw for granite quarrying

Bead dia. (mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed (m/s)	Efficiency (m2/h)	Life time (m2/m)
Φ11	RGW10	High Performance Rubber	40	Sintered beads	Soft granite	22-28	4-8	10-20
					Mid-hard granite	20-24	2-5	7-15
Φ11.5	GRW15				Hard granite	18-22	1-3	5-8
					High abrasiveness	26-30	4-8	8-15

Wire saw for marble quarrying

Bead dia. (mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed (m/s)	Efficiency (m2/h)	Life time (m2/m)
Φ10.5	RMW05	High Performance Rubber	37	Sintered beads	Soft marble	25-35	8-12	25-45
Φ11	RMW10		40		medium hard marble	25-35	6-10	15-25
Φ11.5	RMW15				Hard marble	20-30	5-9	10-20

---
